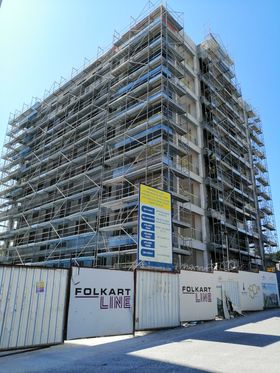

Frame Scaffolding System
The "H-Type Scaffold," also known as the "German Type Scaffold," is a scaffold system used on the facades of buildings. It provides a safe working environment, is easy and quick to assemble and disassemble, and offers many advantages due to its perfect compatibility with building facades.
Our products, which are 100% domestically produced in our factory located in Sakarya Arifiye, comply with the following standards:
- Compliance with Occupational Safety Regulations,
- TSE certification,
- Hot-dip galvanization.
They are produced in accordance with TS-EN 12810-12811 standards.

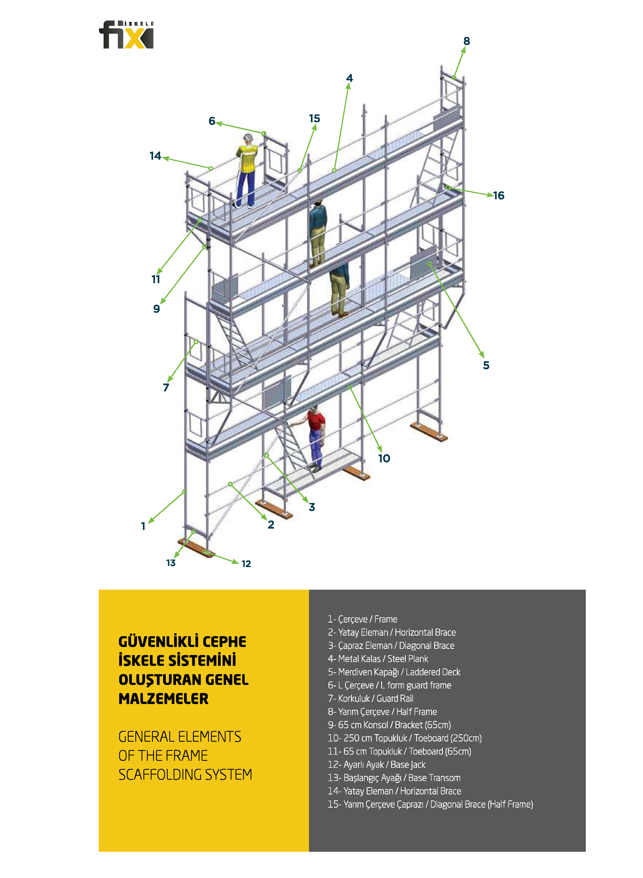

In the manufacturing of the materials you see above in the visual and part names:
- Automatic gas-shielded welding machines are used,
- TSE-certified and mechanically tested pipes and profiles are employed,
- Vertical posts are produced from Ø48-3 mm industrial pipes,
- Horizontal connections are made from Ø34*2.0 mm, cross connections from Ø42*2.5 mm pipes,
- Metal bearers and base plates are manufactured with a special form using a roll-form machine to ensure high strength.
Our products are coated with hot-dip galvanization in compliance with TSE 914-EN ISO 1461, adhering to European standards.
For detailed technical documentation of our products, you can refer to our catalog.
For inquiries regarding the purchase of frame scaffolding, simply send the quantities you need or details of your project to info@fixiskele.com.
The scaffolding systems we offer for sale include:
- Frame Scaffolding System
- Ringlock Scaffolding System
- Mobile Scaffolding System
- Scaffolding Accessories
Note: For projects that require special solutions beyond these, we will consider custom designs.

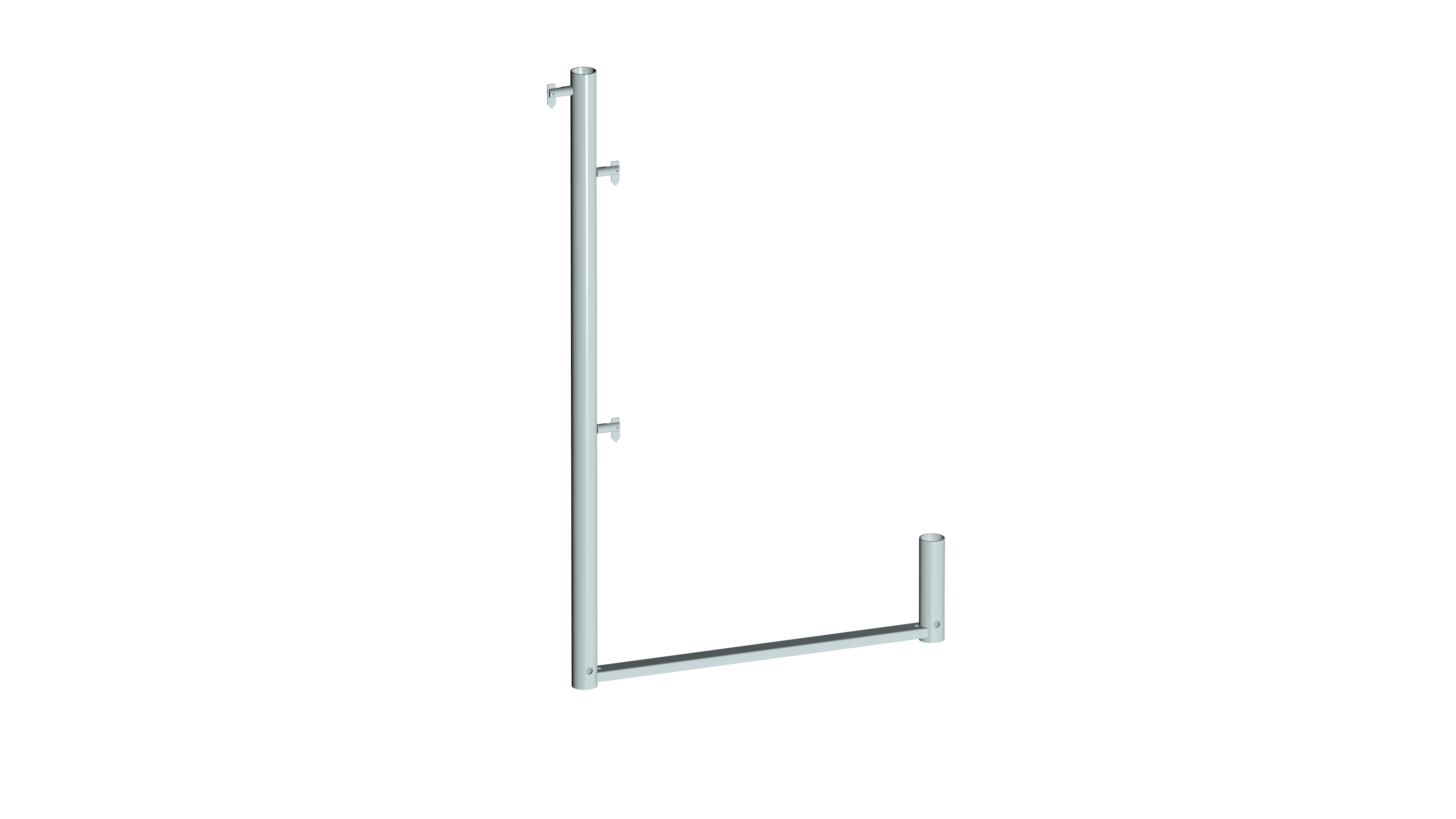

FIXS H 1200 mm L Form W60-90 Frame S235 3.0 mm 3P
L Form frame with H 1200 mm height, W60-90 width. S235 steel, 3.0 mm thickness, 3-piece structure.

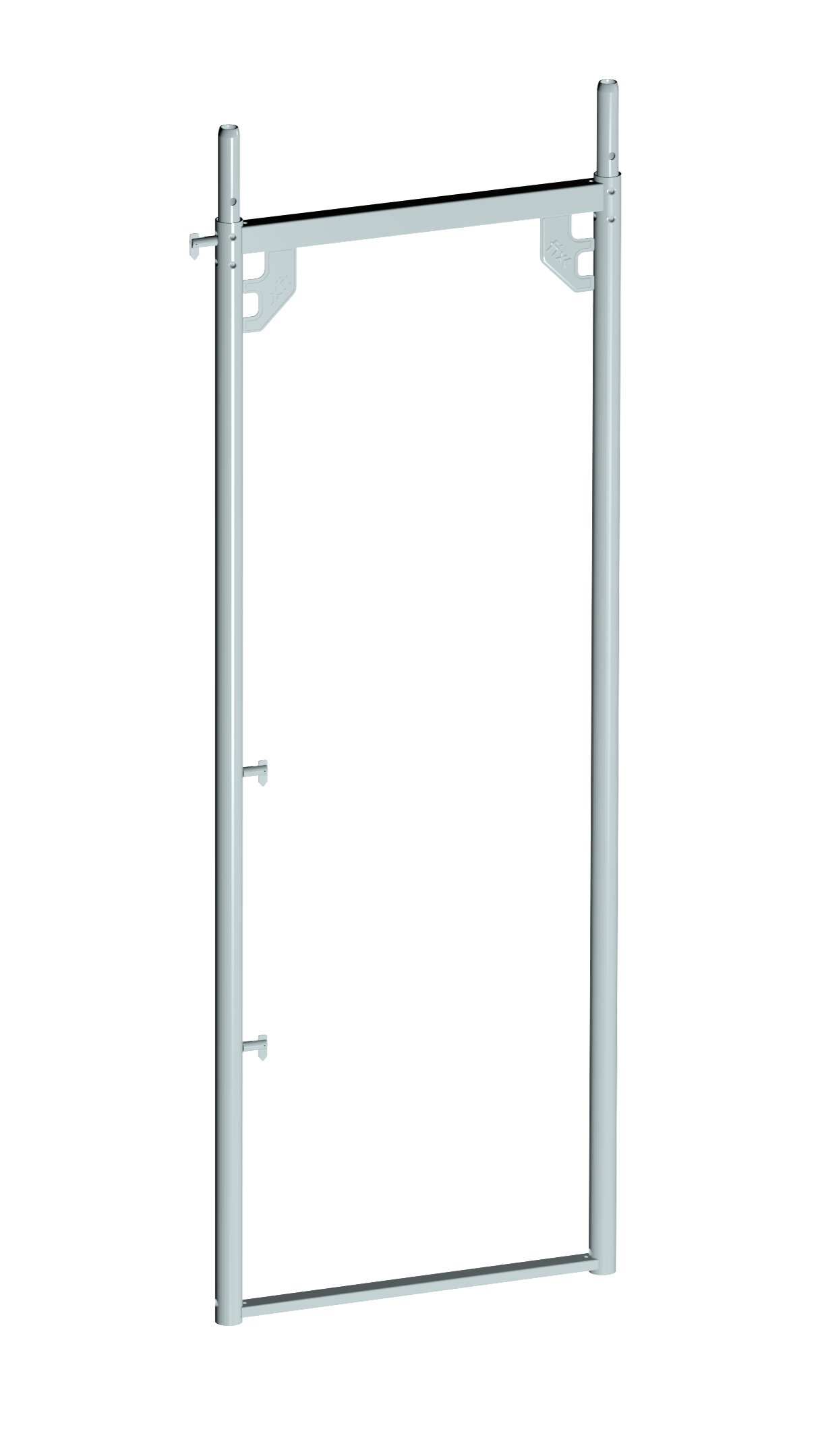

FIXS H 2000 mm Box Form W60-90 Frame S235 3.0 mm 3P
Box Form frame with H 2000 mm height, W60-90 width. S235 steel, 3.0 mm thickness, 3-piece structure.

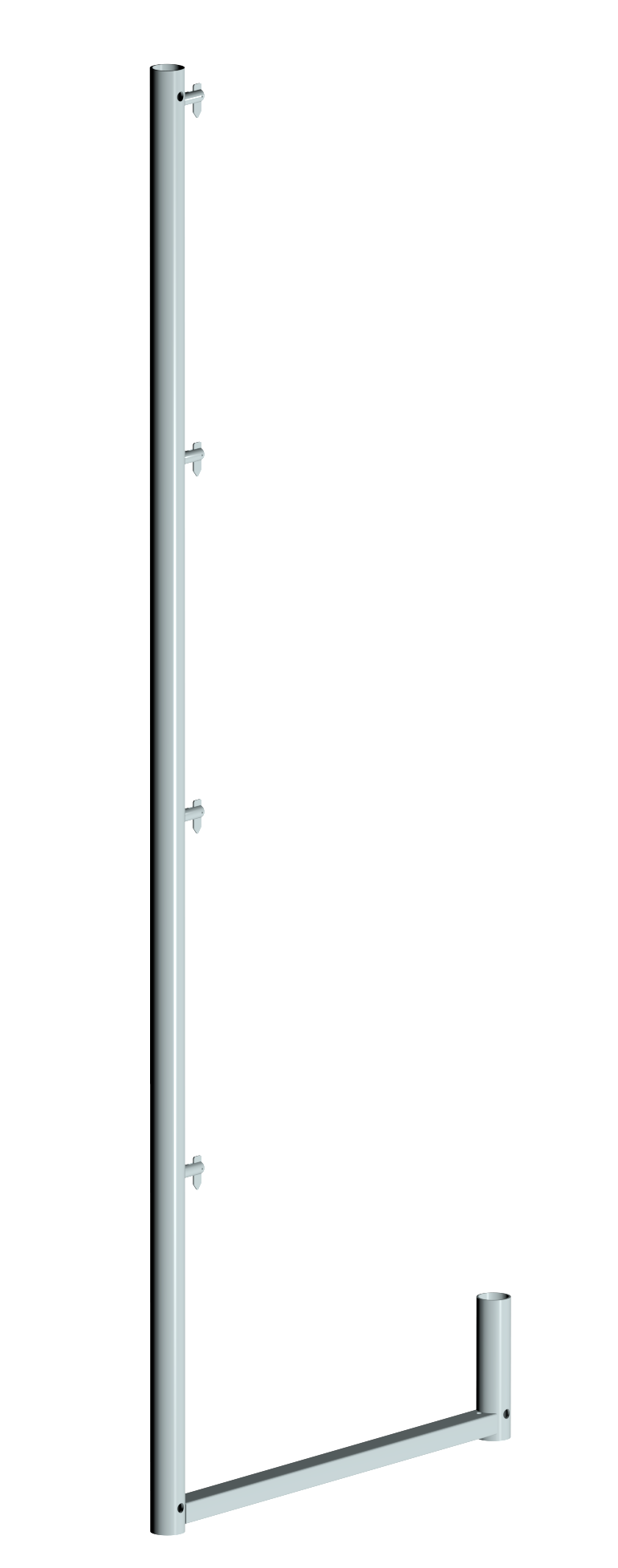

FIXS H 2000 mm Guard Rail Post W60-90 S235 3.2 mm
Guard rail post H 2000 mm, W60-90 width. S235 steel, 3.2 mm thickness, 4-piece design for top net connection.

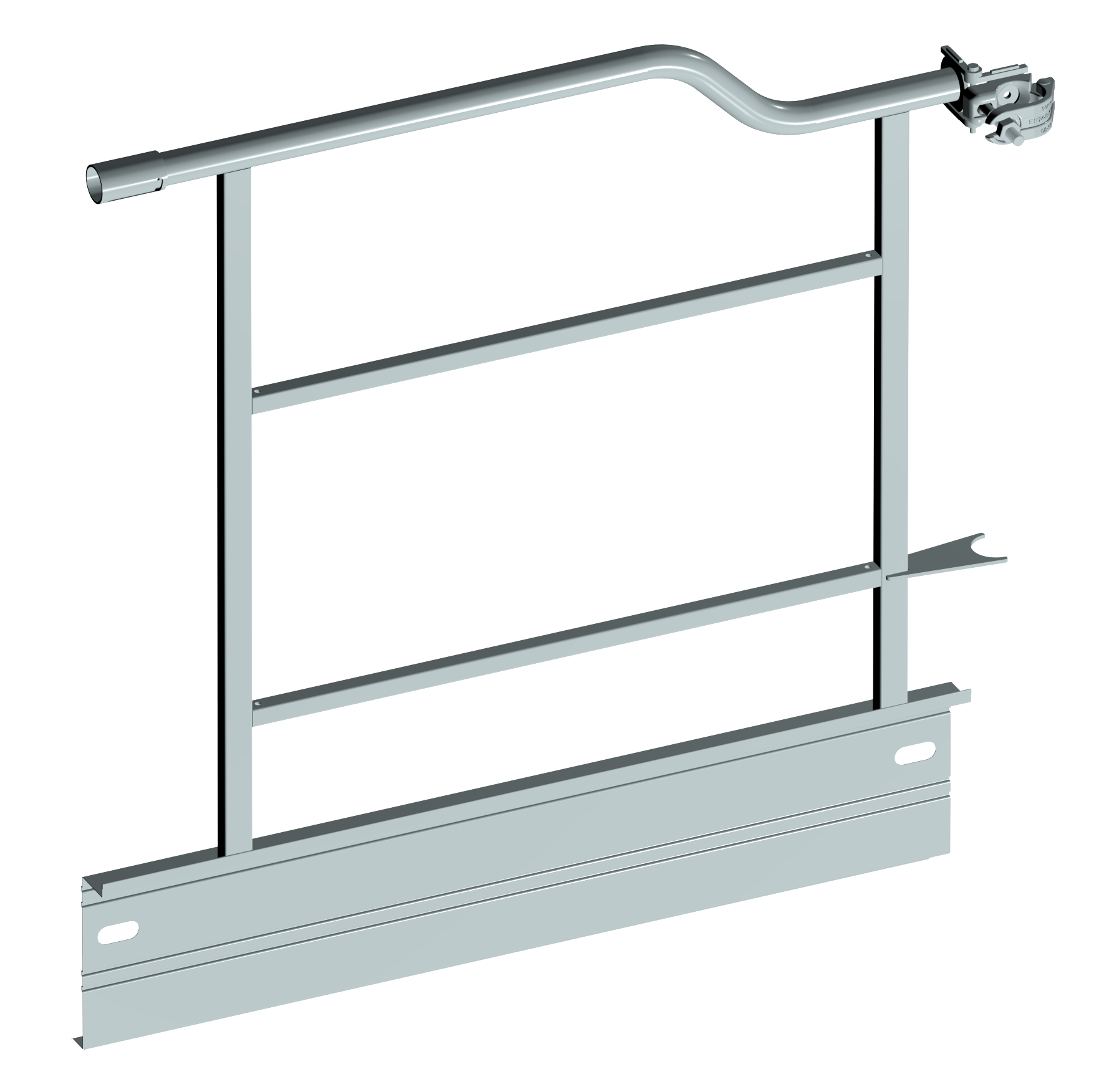

FIXS H 950 mm Guard Rail W 90-120 S235 2.0 mm Hinged Opening
Guard rail H 950 mm, W 90-120 mm width. S235 steel, 2.0 mm thickness, hinged gate mechanism.

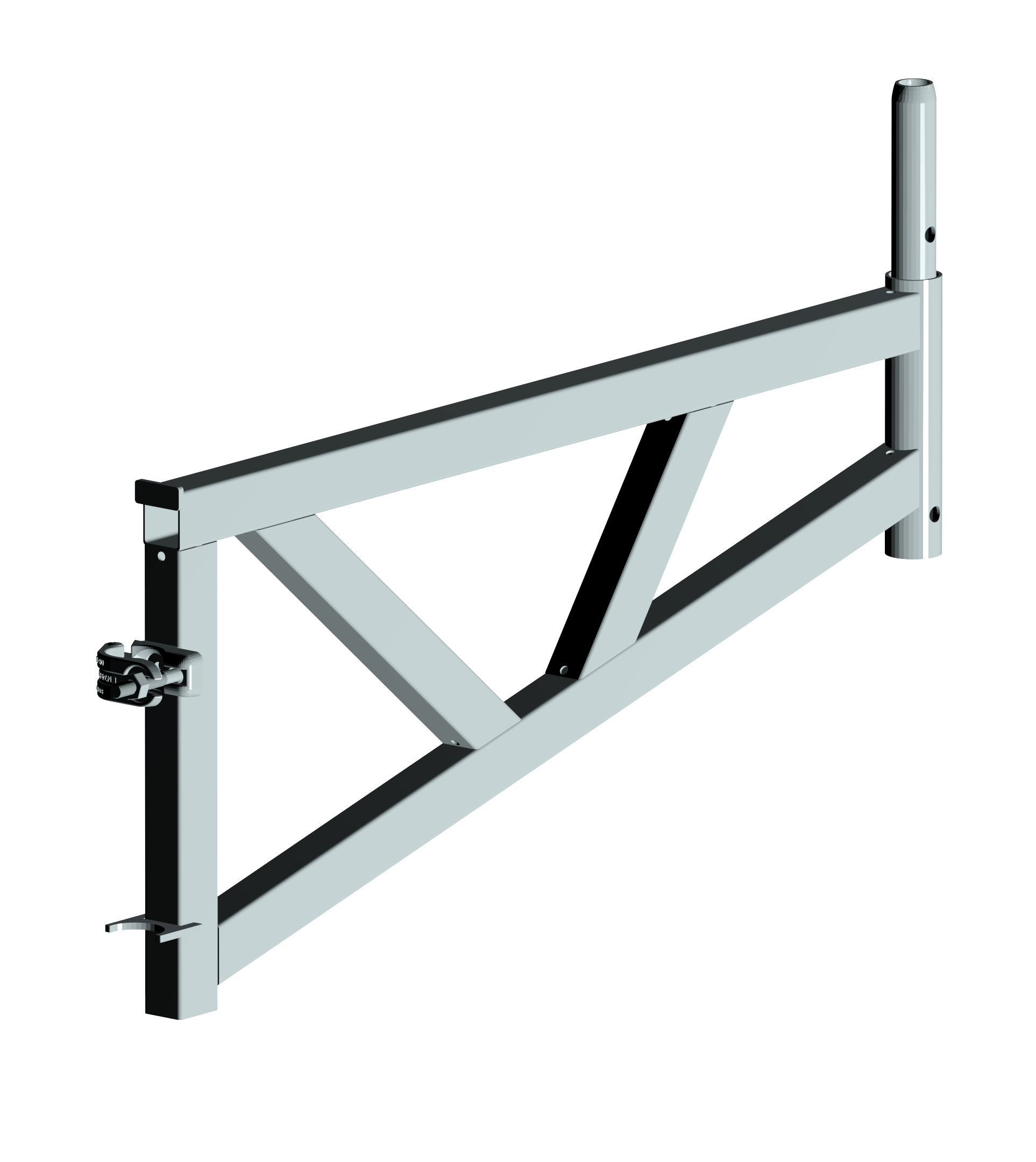

FIXS L 1012 mm Three Deck Bracket S235 3.2 mm
Three-level console bracket, L 1012 mm length. S235 steel, 3.2 mm thickness.

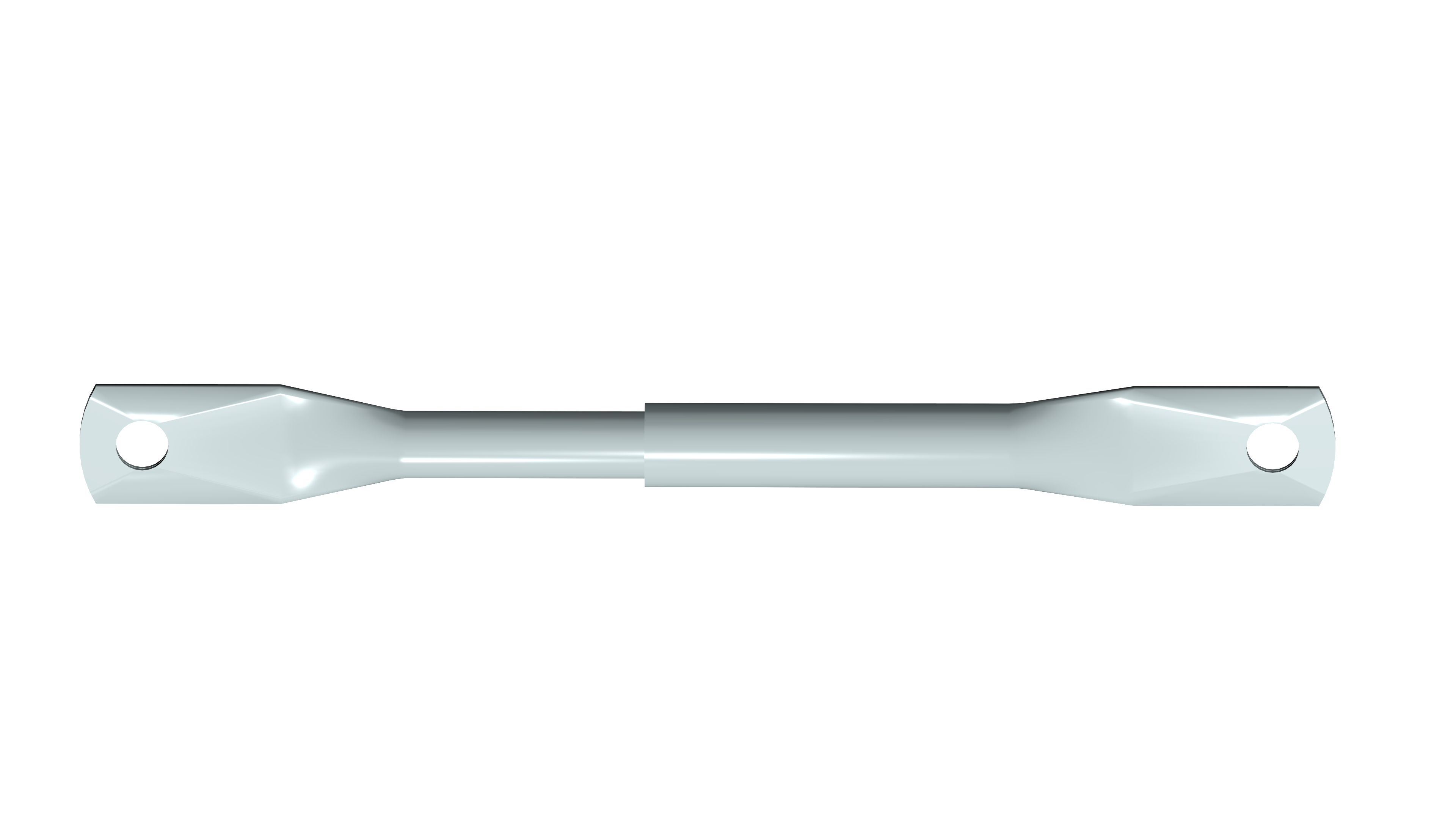

FIXS L 350-450 mm Telescopic Horizontal Bracing S235 3.0 mm
Telescopic horizontal bracing with adjustable length L 350-450 mm. S235 steel, 3.0 mm thickness.

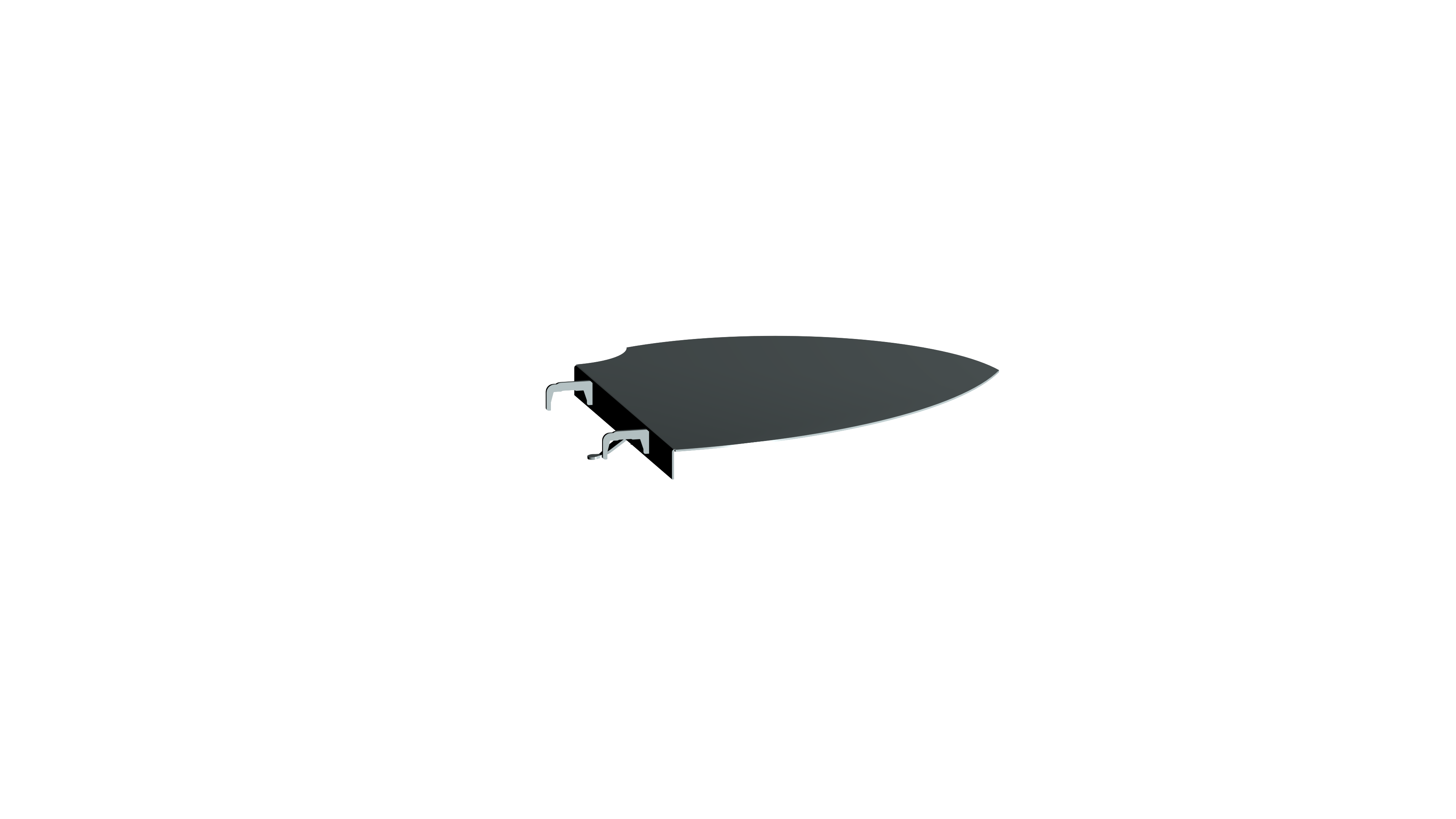

FIXS Corner Planks S275 4.0 mm W 550 mm 0-45°
Corner plank, W 550 mm width, adjustable 0-45°. S275 steel, 4.0 mm thickness.

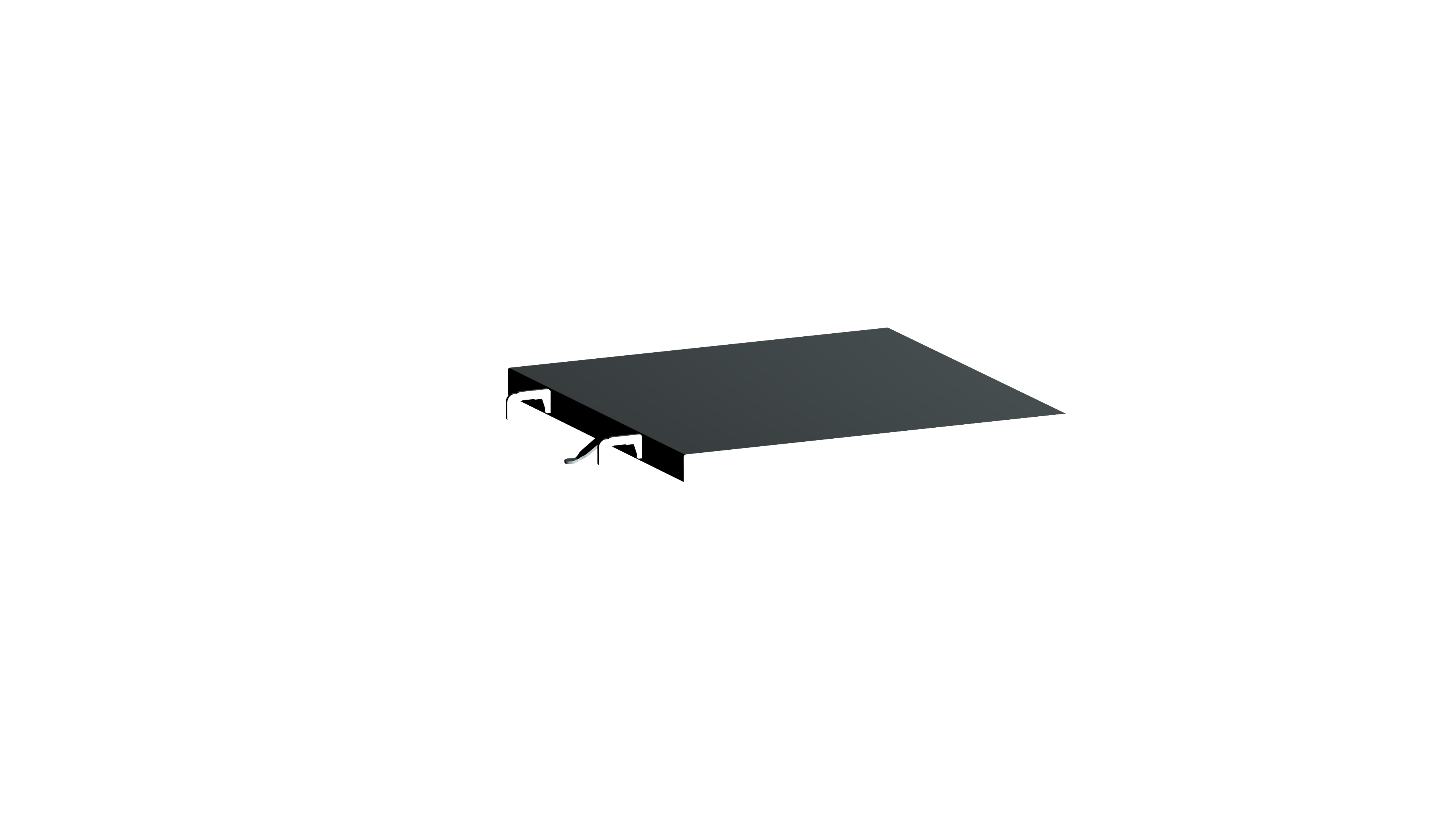

FIXS Corner Planks S275 4.0 mm W 596 mm
Corner plank, W 596 mm width. S275 steel, 4.0 mm thickness.

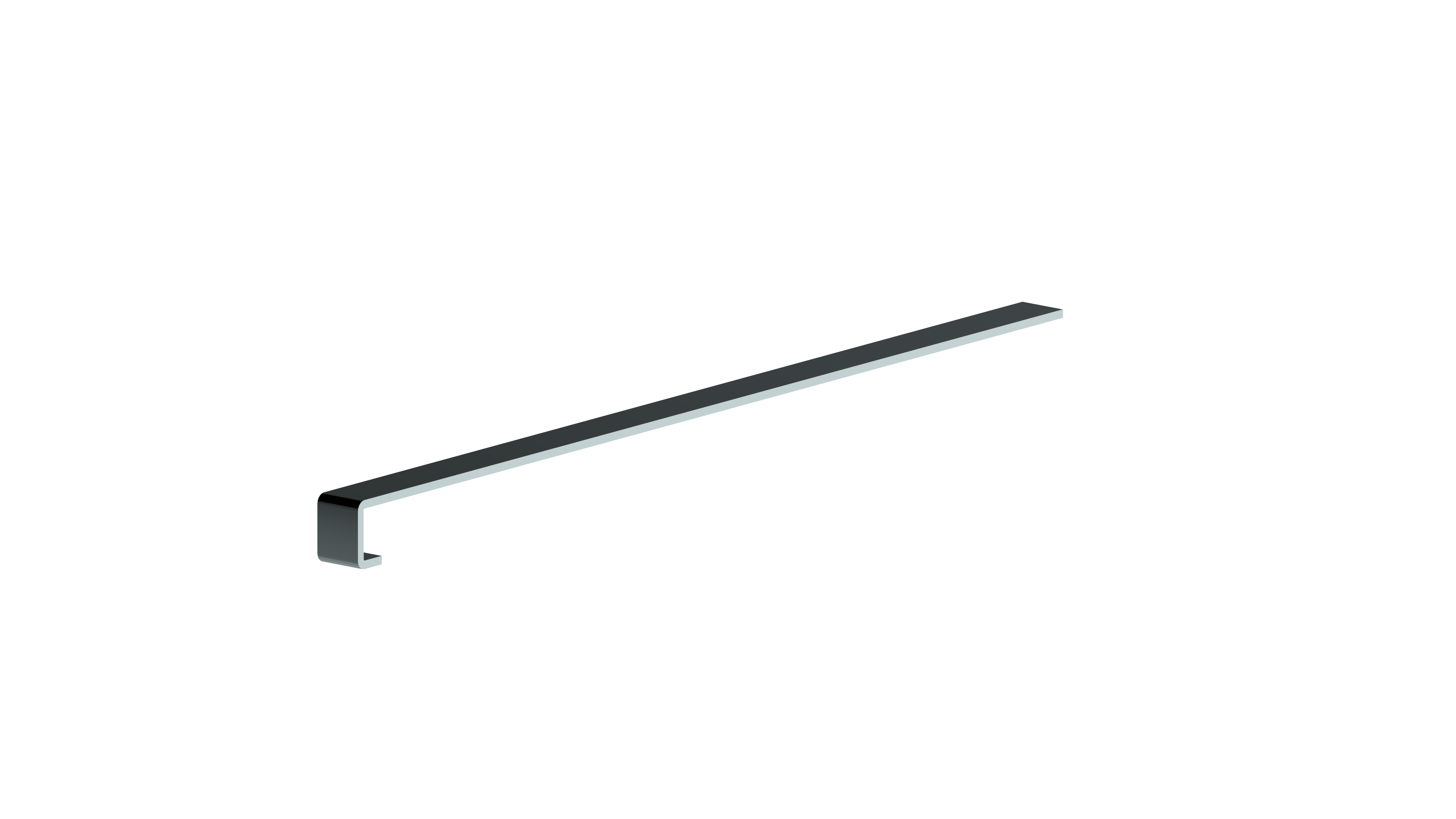

FIXS Two Deck Shelter Bracket S235 3.5 mm - Deck Lock
Two-level shelter bracket. S235 steel, 3.5 mm thickness, with deck lock connection.

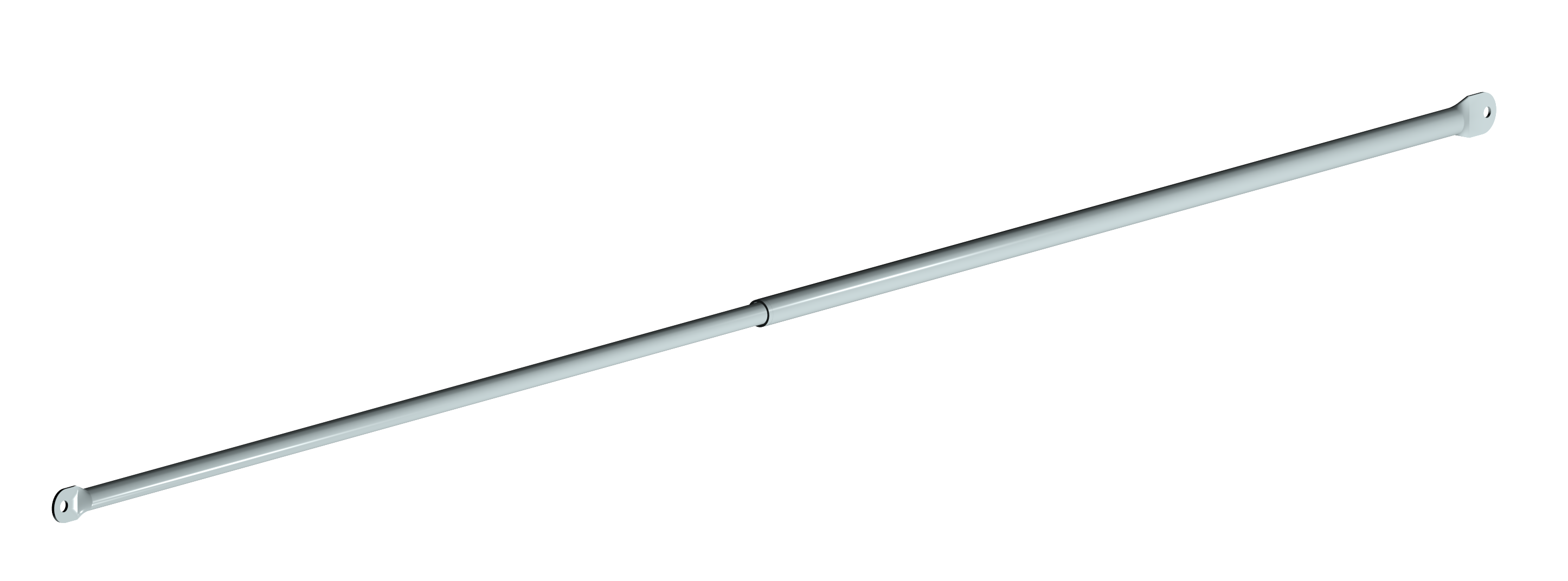

FIXS Assembly Guard Rail Post Telescopic Brace ALM 6063 L 2000-3070 mm - Accessories
Assembly guard rail post telescopic brace, adjustable length L 2000-3070 mm. ALM 6063 aluminium accessory.

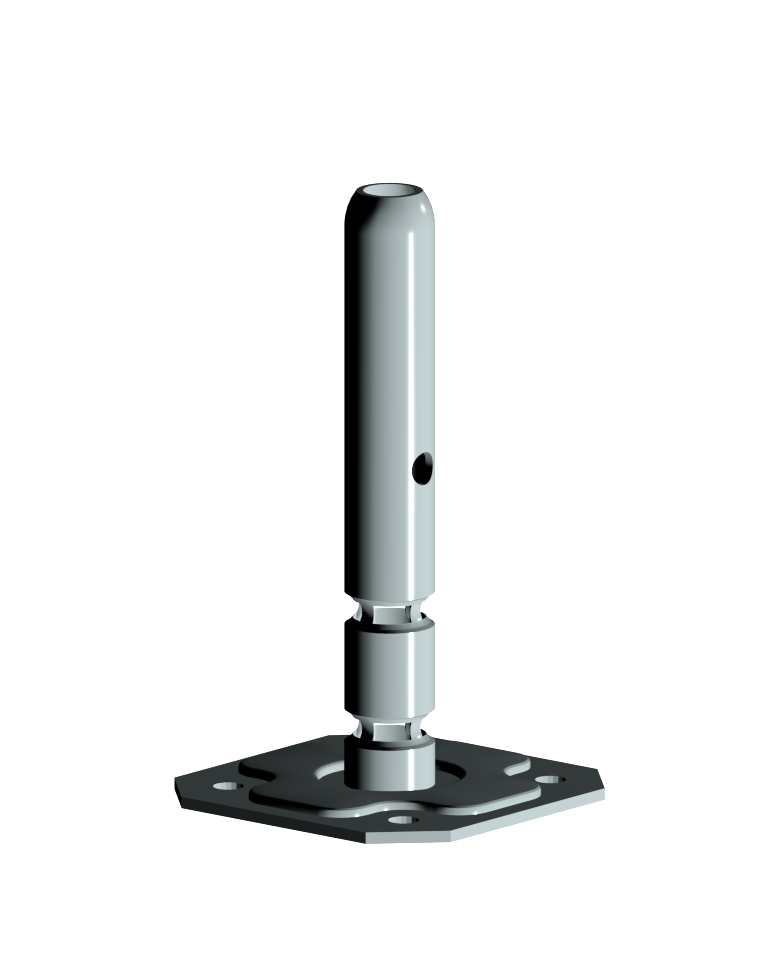

FIXS Base Plate S235 L 300 mm - Accessories
Base plate, L 300 mm length. S235 steel accessory.

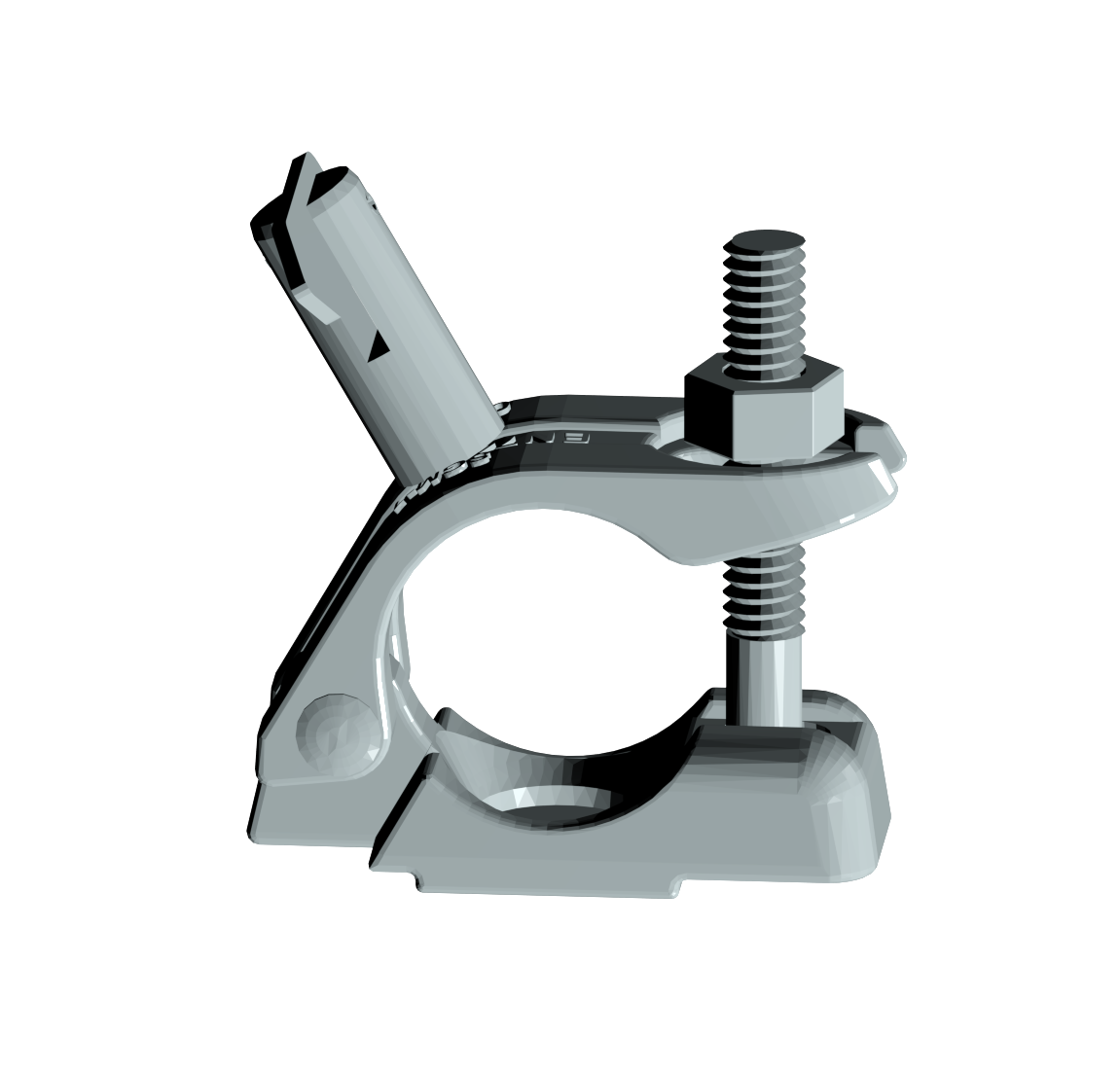

FIXS Clamp With Pin S235 Forged Ø40-48 mm - Accessories
Clamp with pin, Ø40-48 mm diameter. Forged S235 steel accessory.

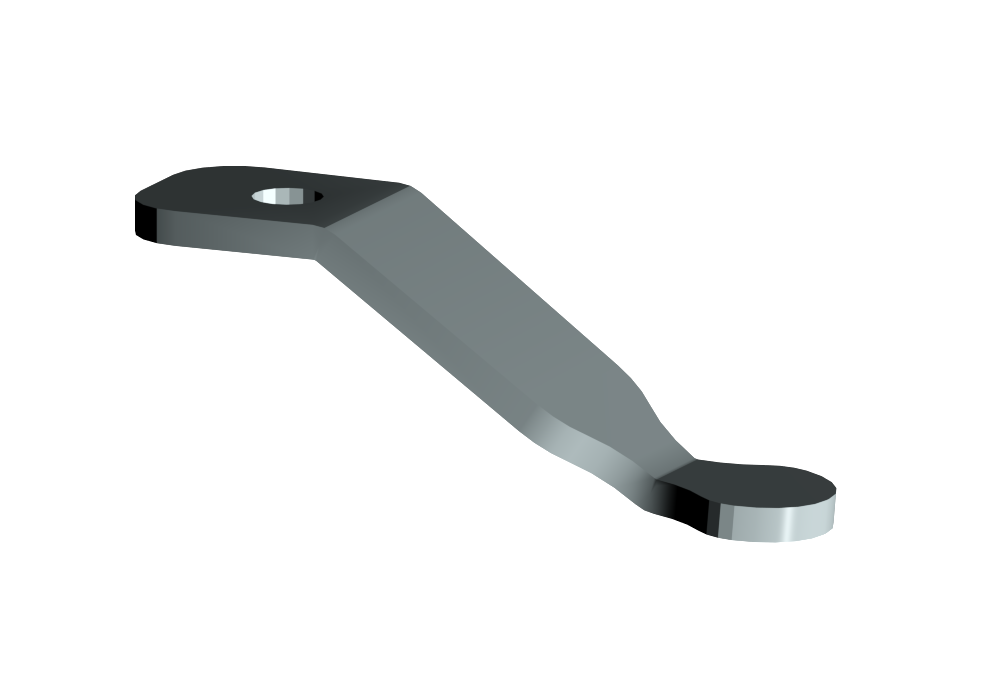

FIXS Deck Lock S235 L 650 mm - Accessories
Deck lock, L 650 mm length. S235 steel accessory.

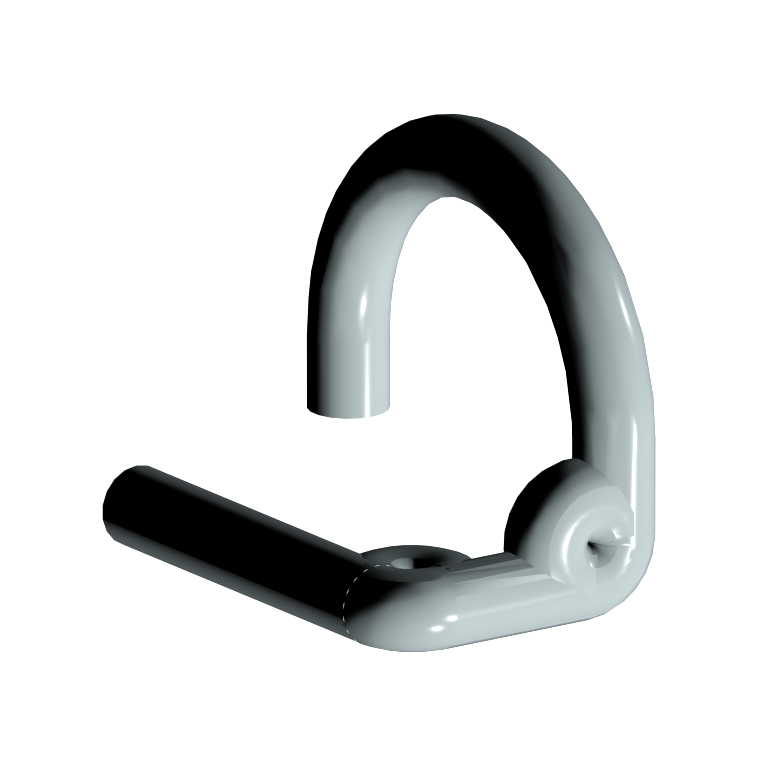

FIXS Drop Pin S235 - Accessories
Drop pin. S235 steel accessory.

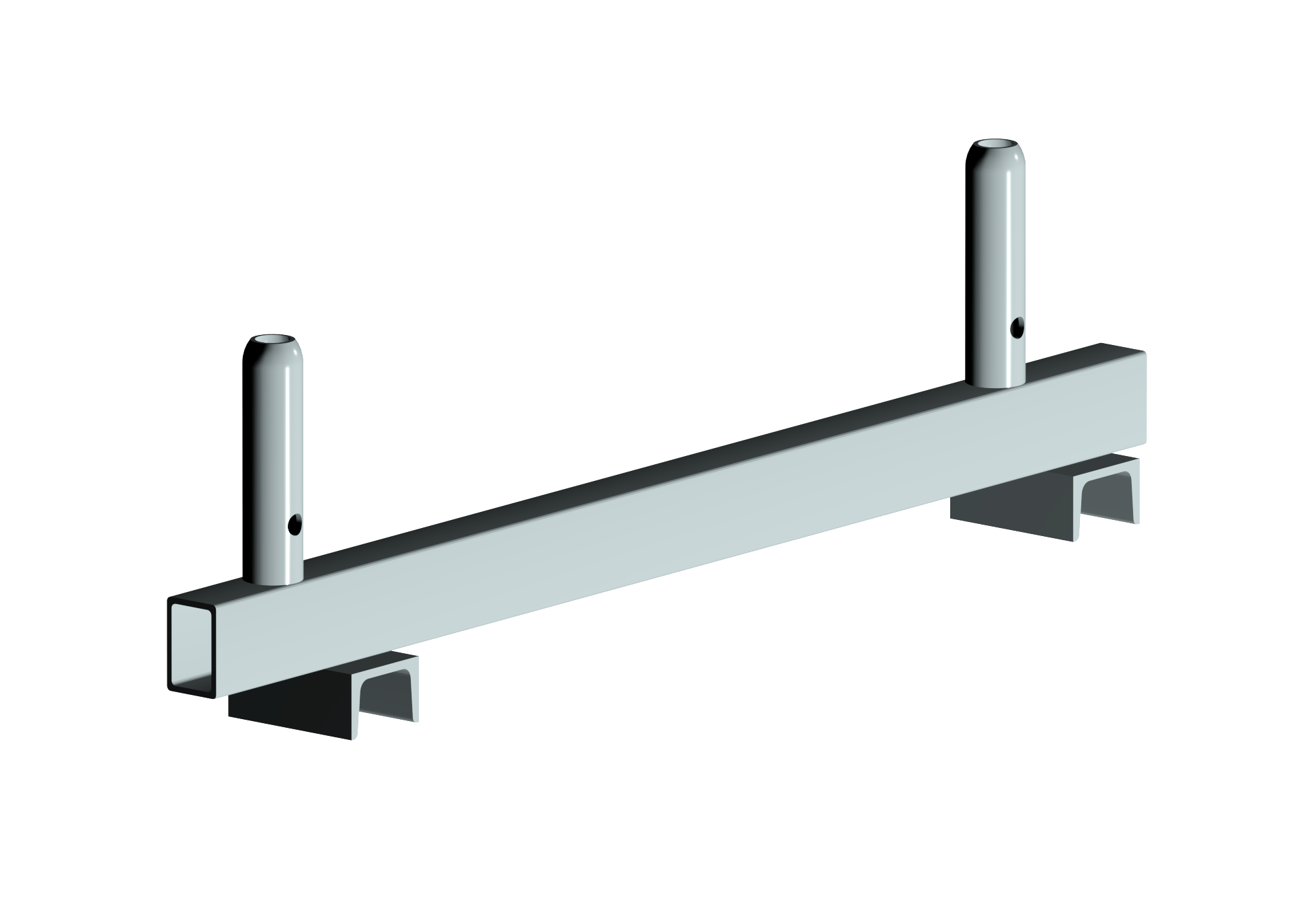

FIXS Girder Coupler S235 - Accessories
Girder coupler. S235 steel accessory.

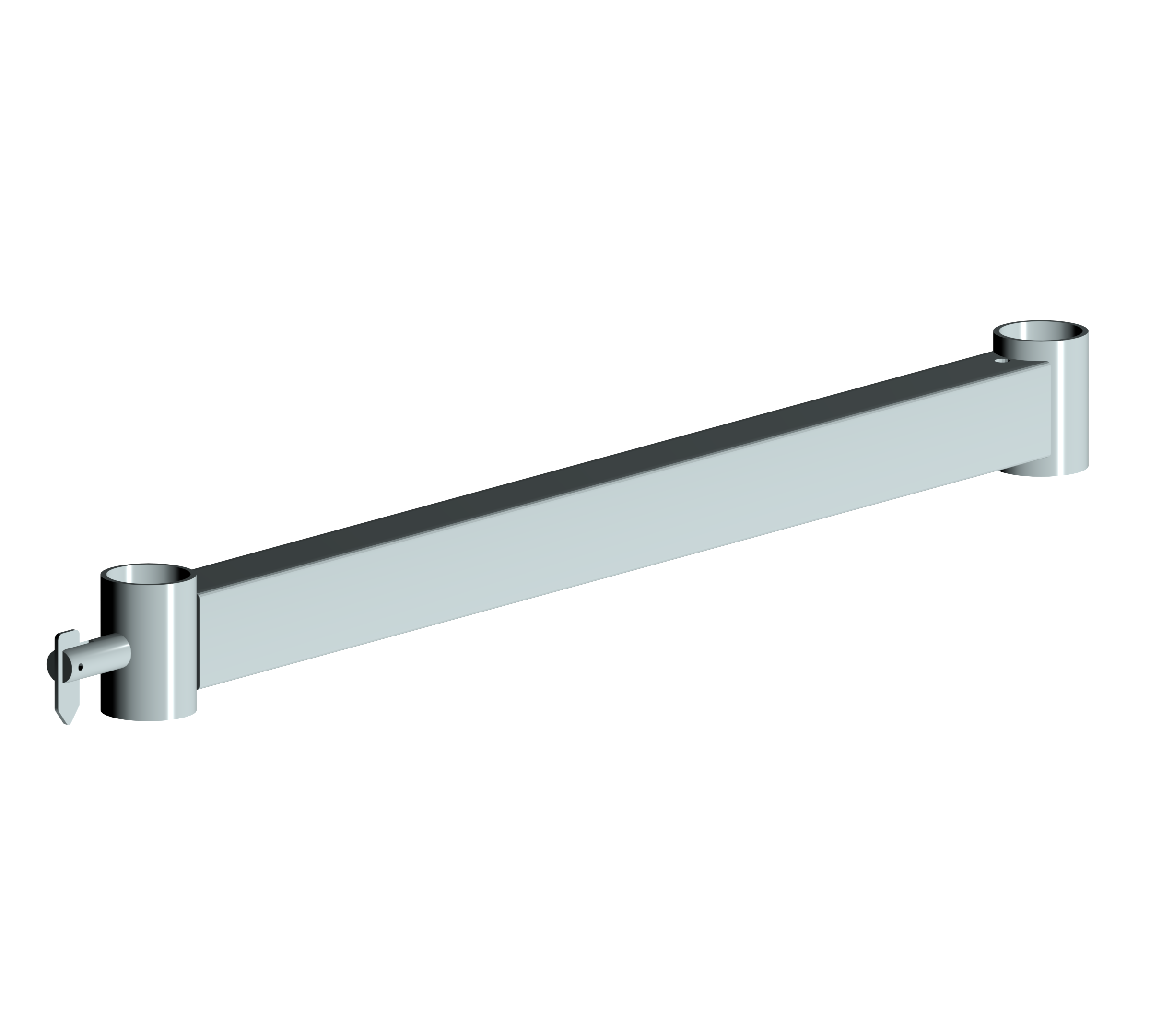

FIXS H 70 mm Base Transom S235 4.0 mm W 60-90
Base transom, H 70 mm height, W 60-90 width. S235 steel, 4.0 mm thickness.

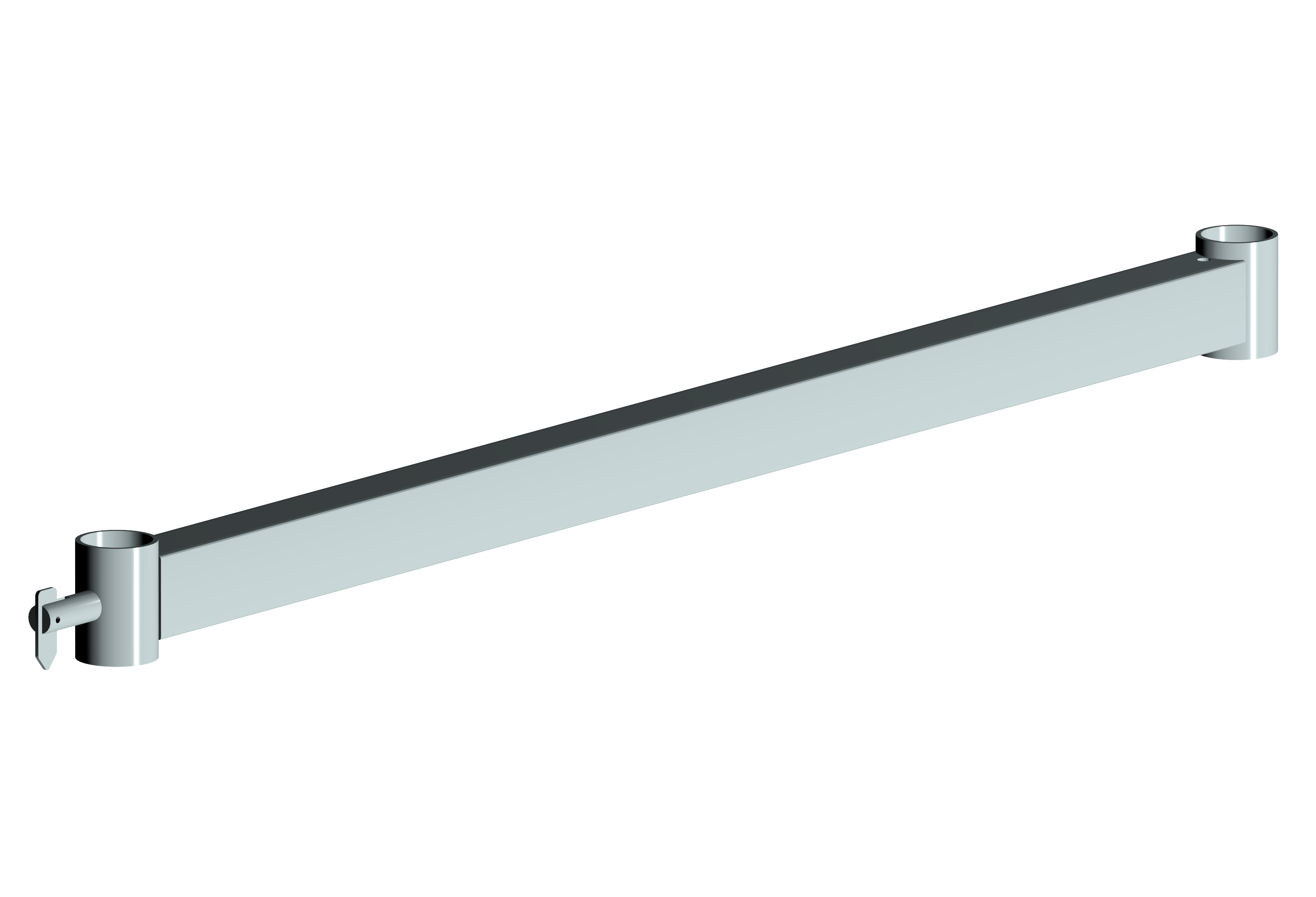

FIXS H 70 mm Base Transom S235 4.0 mm W 90-120
Base transom, H 70 mm height, W 90-120 width. S235 steel, 4.0 mm thickness.

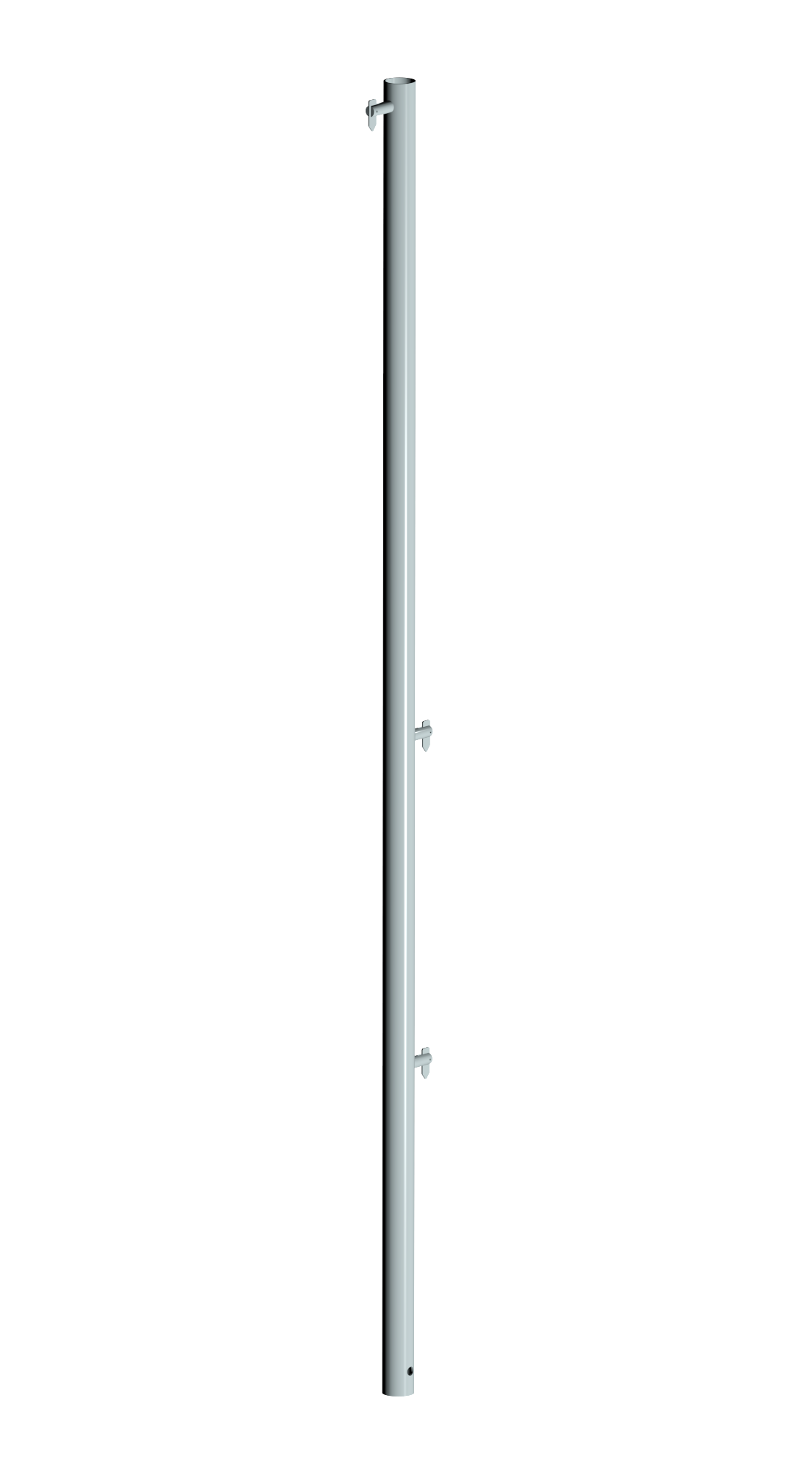

FIXS H 1000 mm Guard Rail Post S235 3.0 mm 3P
Guard rail post, H 1000 mm height. S235 steel, 3.0 mm thickness, 3-piece structure.

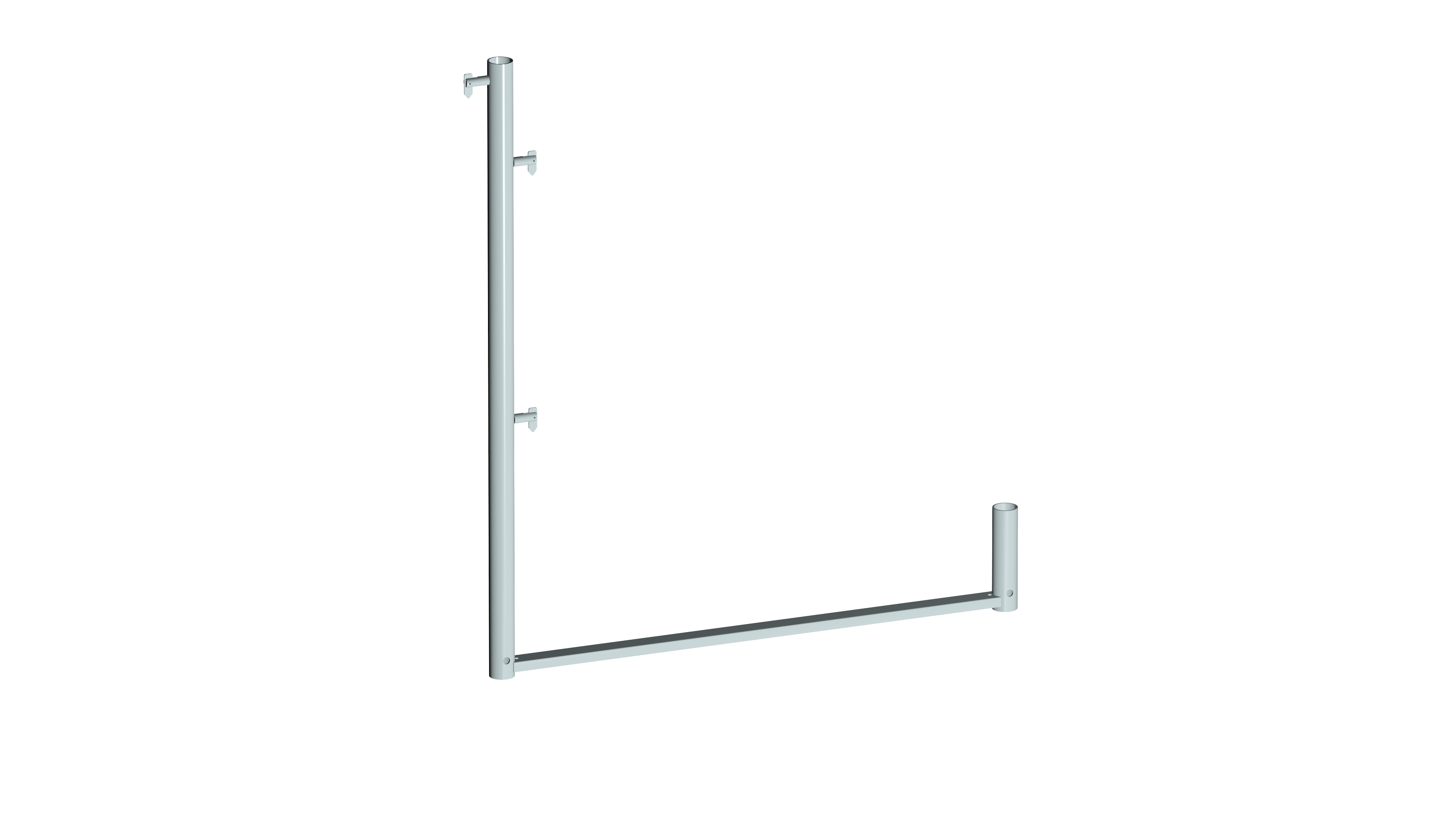

FIXS H 1200 mm L Form W90-120 Frame S235 3.0 mm 3P
L Form frame with H 1200 mm height, W90-120 width. S235 steel, 3.0 mm thickness, 3-piece structure.

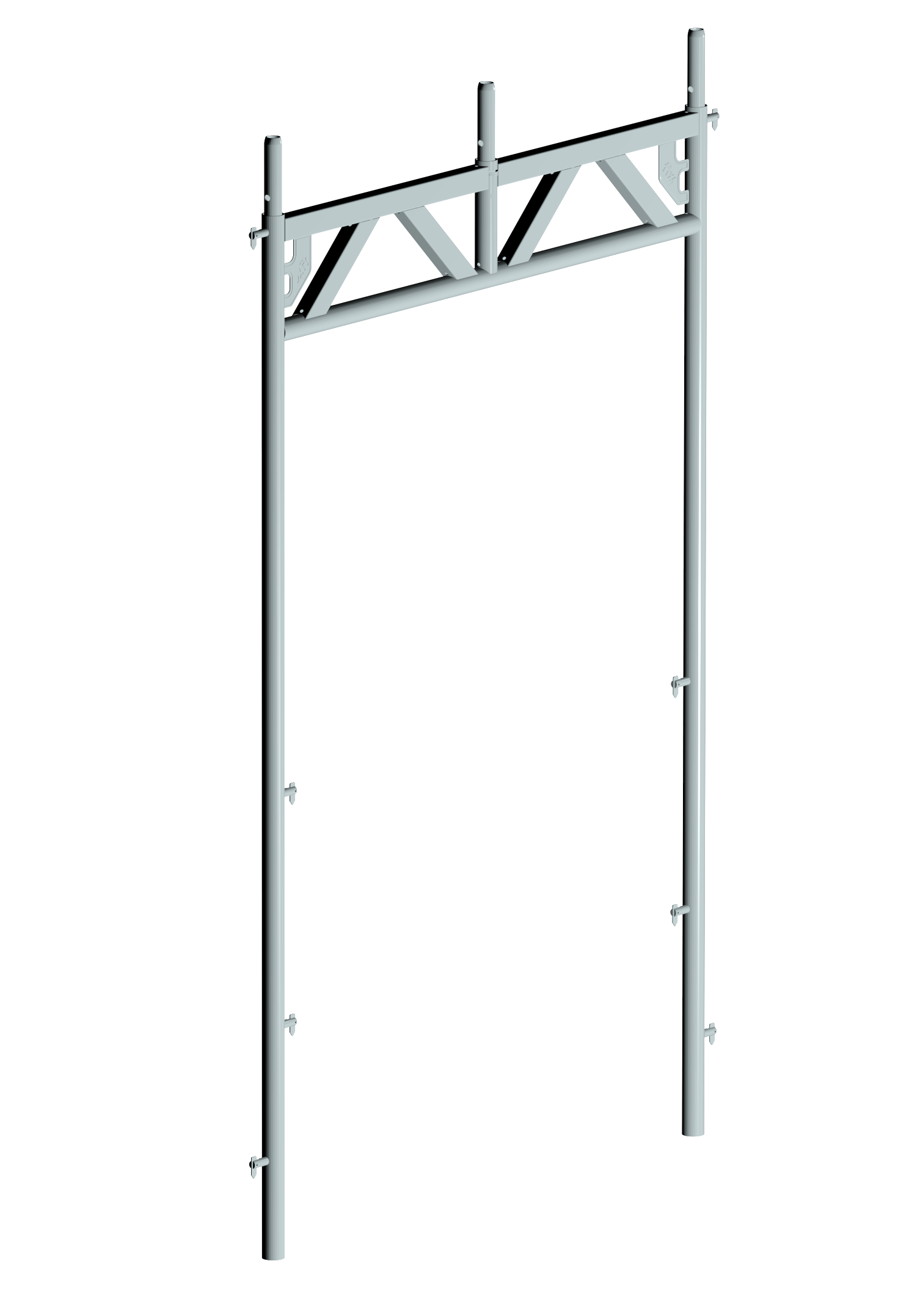

FIXS H 2250 mm PF Frame W 1396 mm S235 4.0 mm 8P
PF frame with H 2250 mm height, W 1396 mm width. S235 steel, 4.0 mm thickness, 8-piece structure.

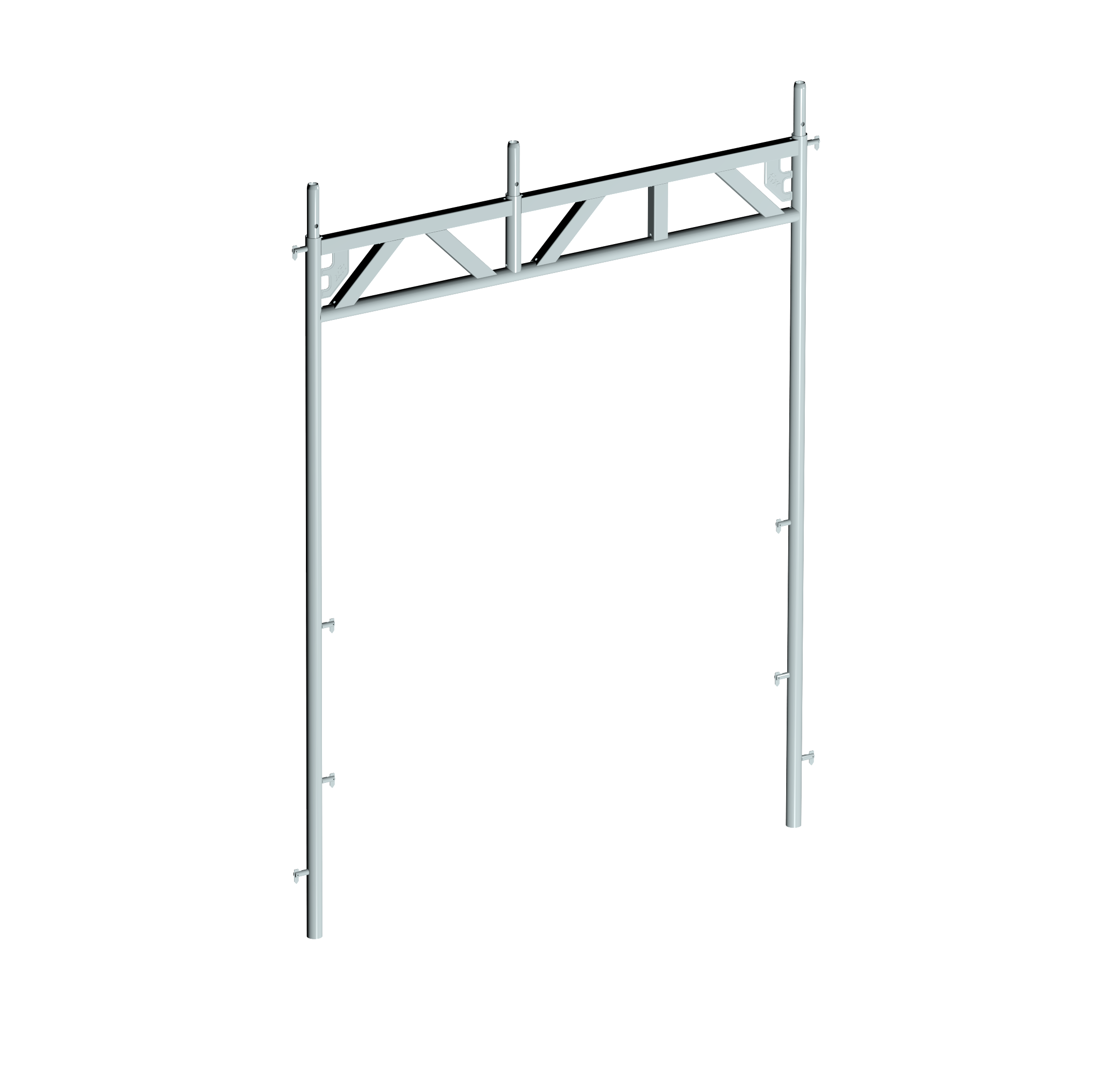

FIXS H 2250 mm PF Frame W 1710 mm S235 4.0 mm 8P
PF frame with H 2250 mm height, W 1710 mm width. S235 steel, 4.0 mm thickness, 8-piece structure.

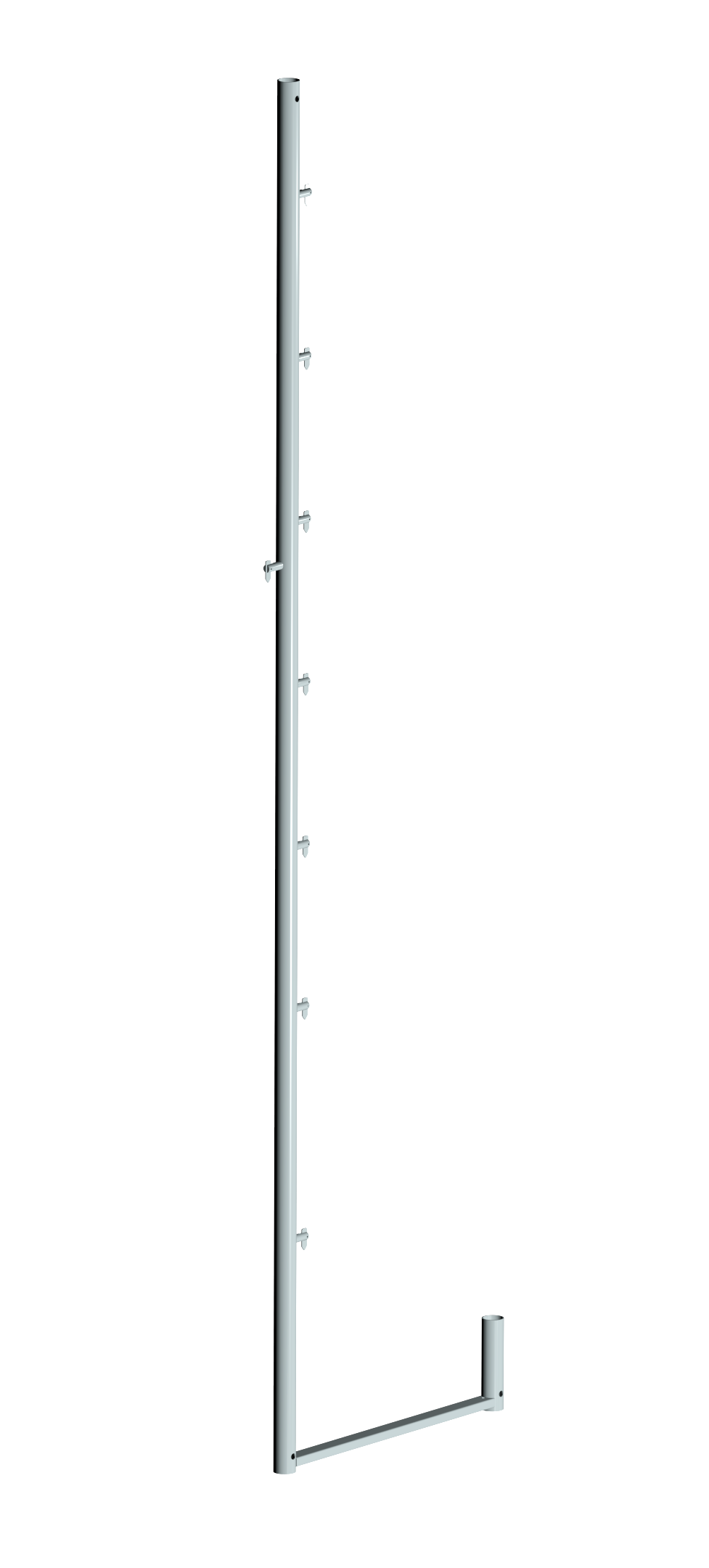

FIXS H 2500 mm Guard Rail Post W60-90 S235 4.0 mm - Top Net 6P
Guard rail post H 2500 mm, W60-90 width. S235 steel, 4.0 mm thickness, 6-piece design for top net connection.

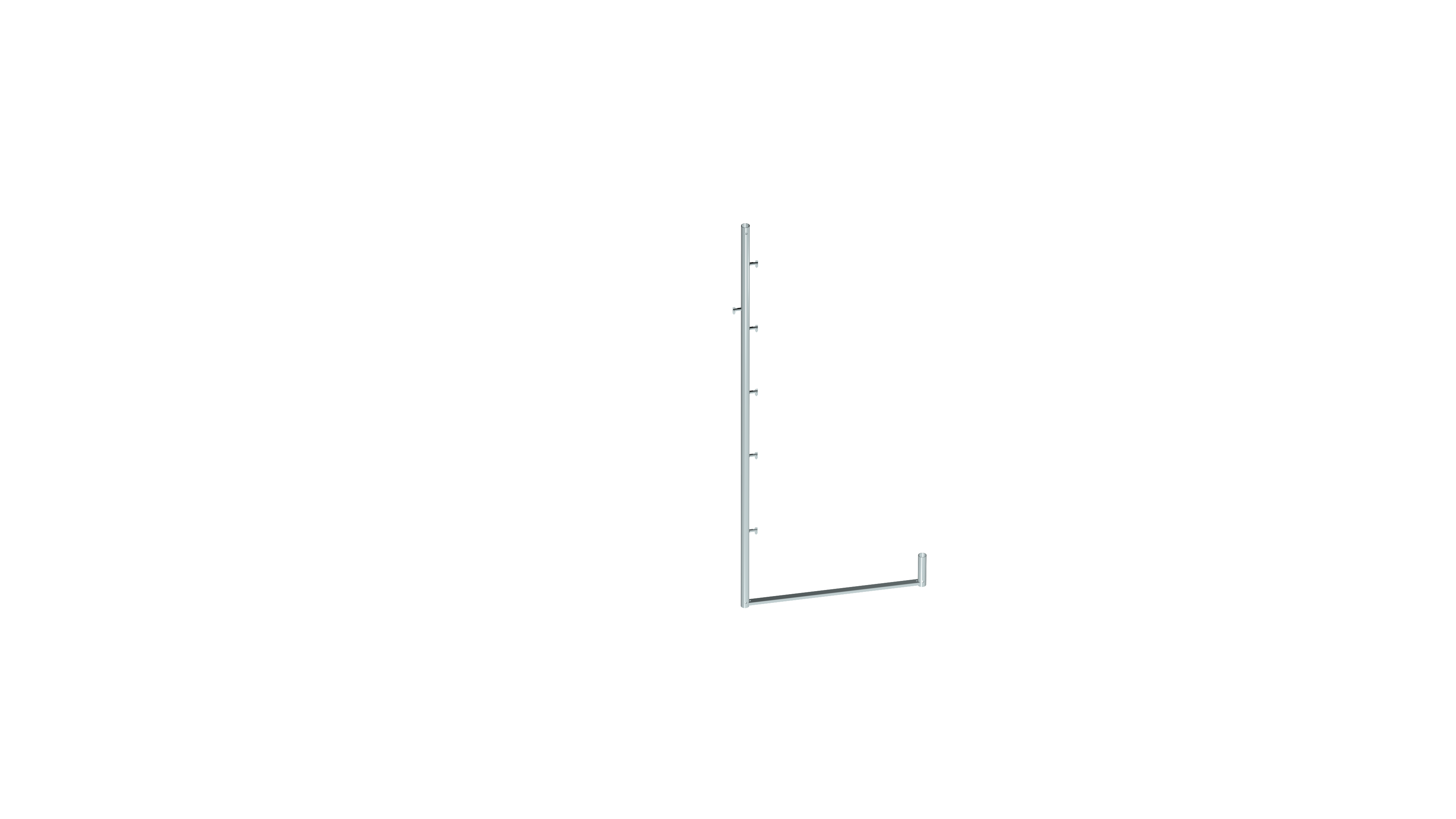

FIXS H 2500 mm Guard Rail Post W90-120 S235 4.0 mm - Top Net 6P
Guard rail post H 2500 mm, W90-120 width. S235 steel, 4.0 mm thickness, 6-piece design for top net connection.

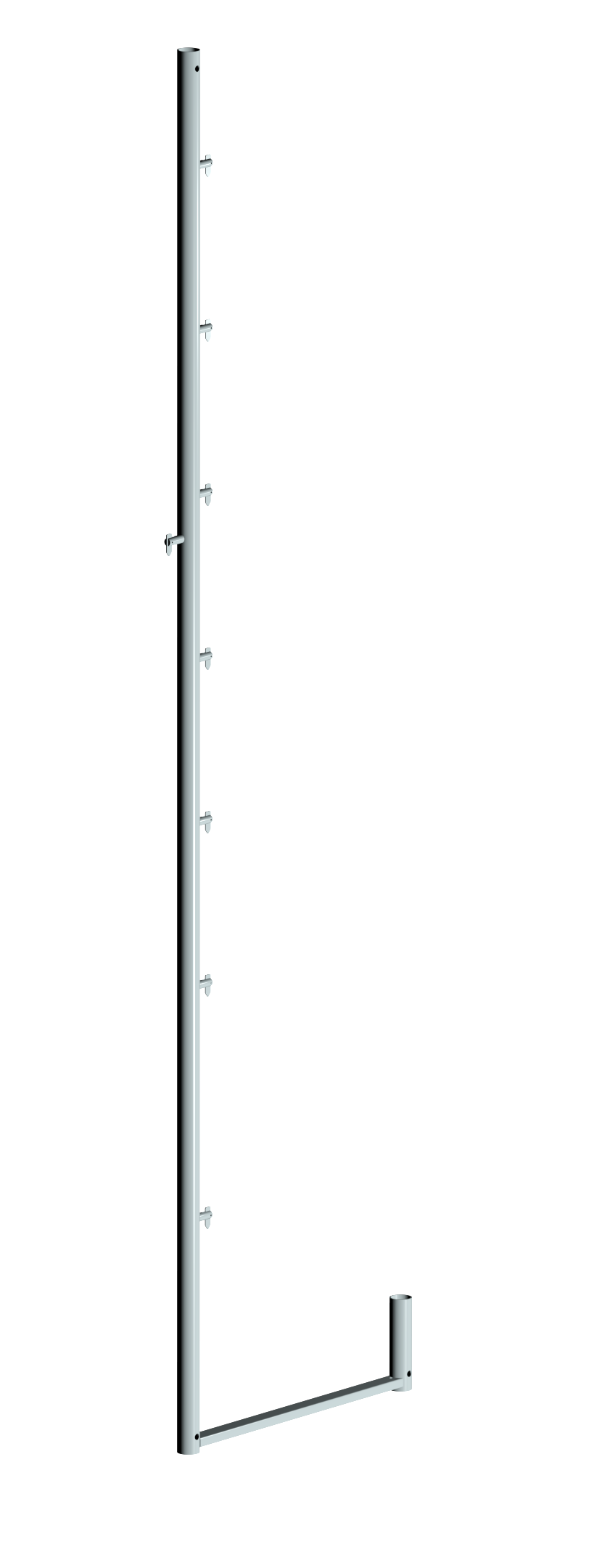

FIXS H 3000 mm Guard Rail Post W60-90 S235 4.0 mm - Top Net 8P
Guard rail post H 3000 mm, W60-90 width. S235 steel, 4.0 mm thickness, 8-piece design for top net connection.

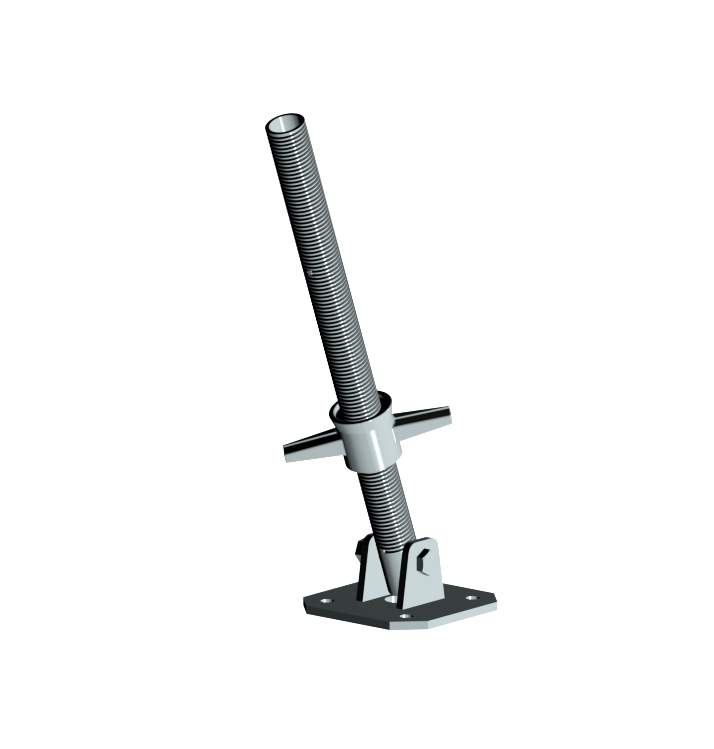

FIXS H 500 mm Base Jack S235 4.0 mm - Swivel
Adjustable base jack, H 500 mm. S235 steel, 4.0 mm thickness, swivel base.

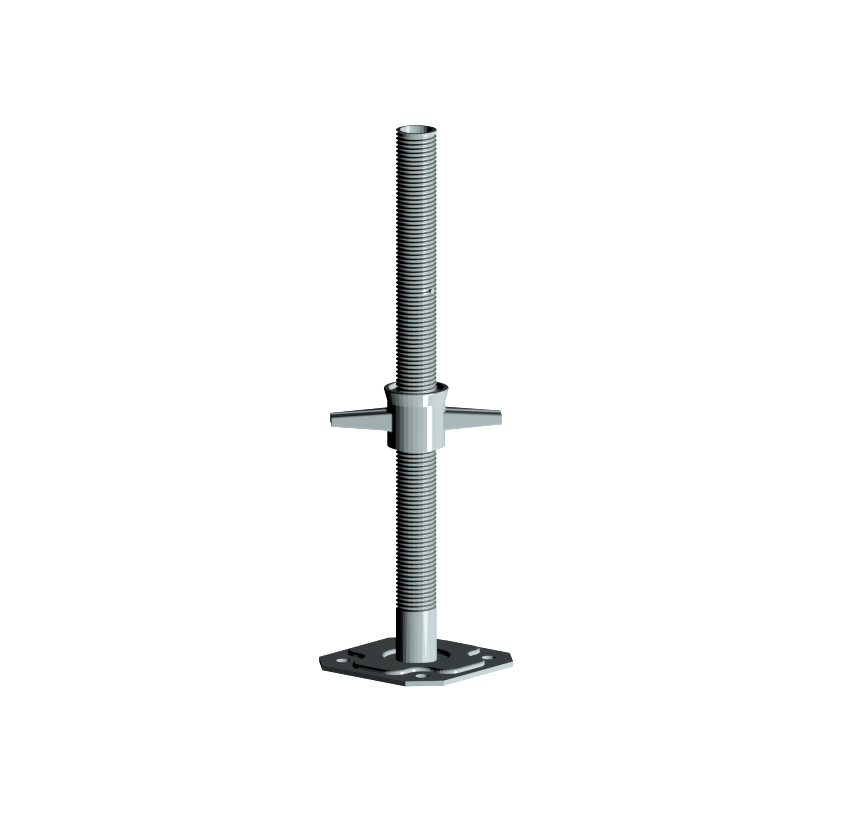

FIXS H 500 mm Base Jack S235 4.0 mm
Adjustable base jack, H 500 mm. S235 steel, 4.0 mm thickness.

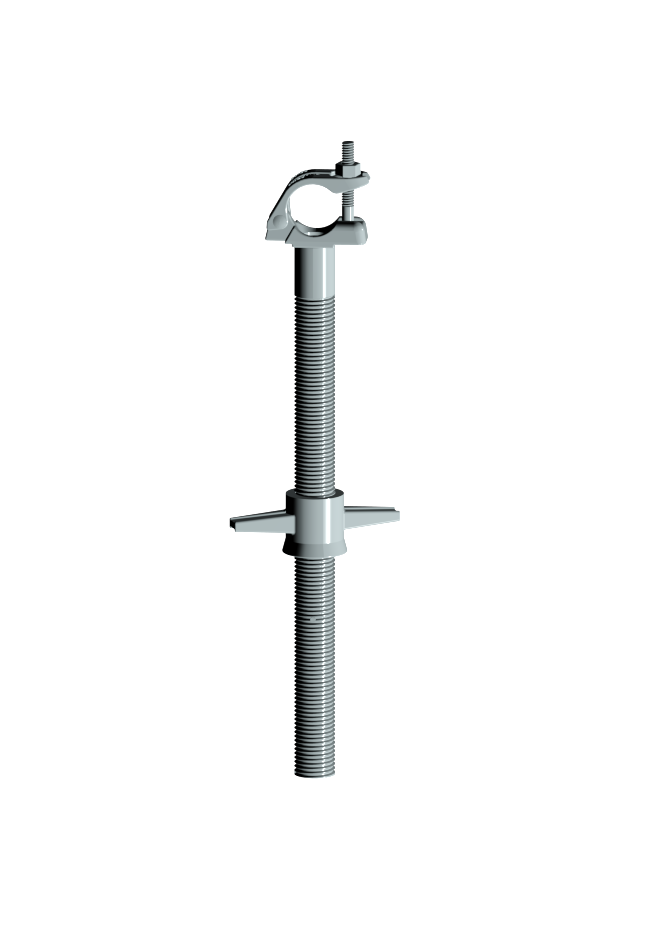

FIXS H 500 mm Base Jack S235 4.0 mm - With Clamp
Adjustable base jack, H 500 mm. S235 steel, 4.0 mm thickness, with clamp.

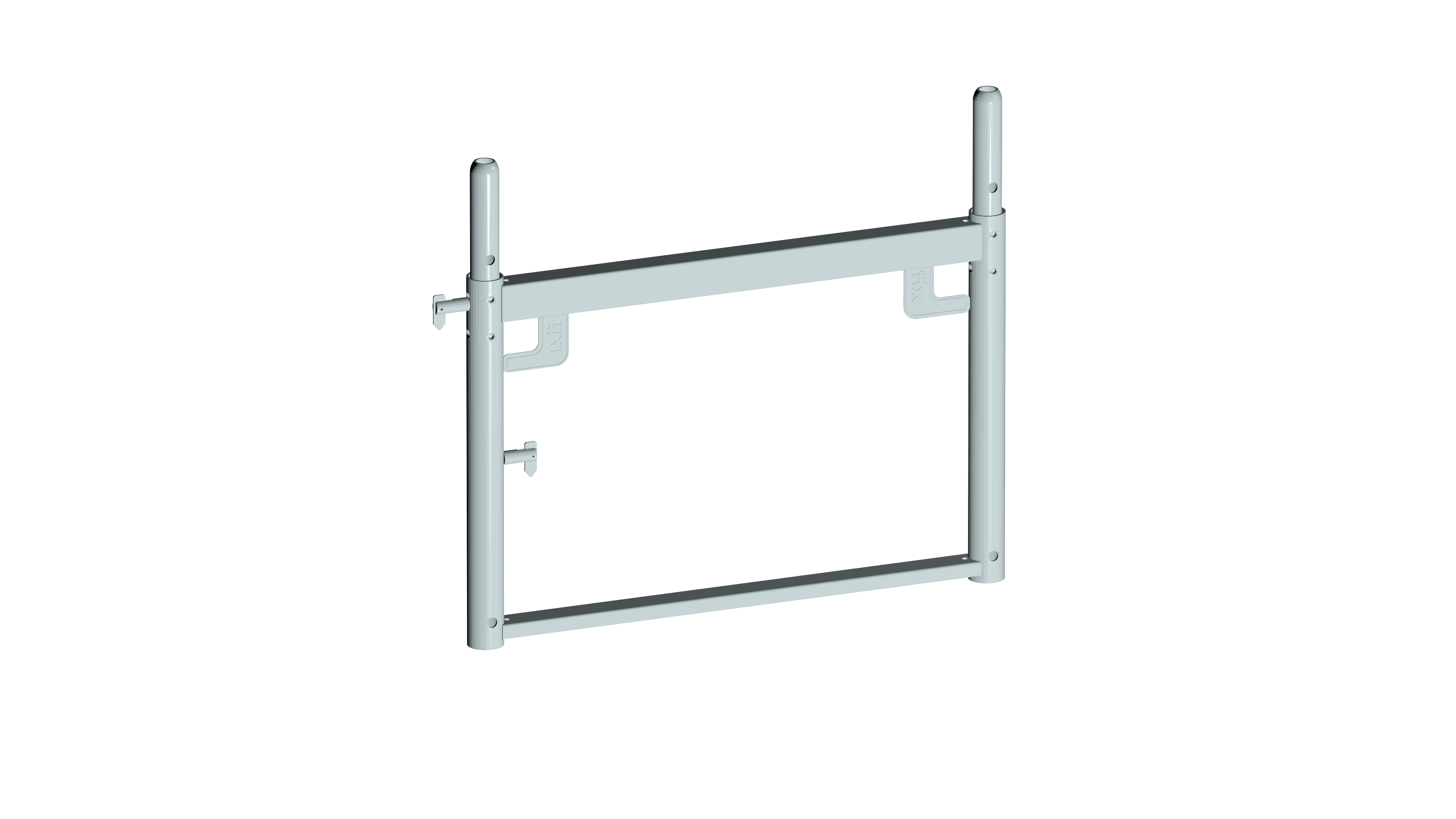

FIXS H 500 mm Box Form W60-90 Frame S235 3.0 mm 3P
Box Form frame with H 500 mm height, W60-90 width. S235 steel, 3.0 mm thickness, 3-piece structure.

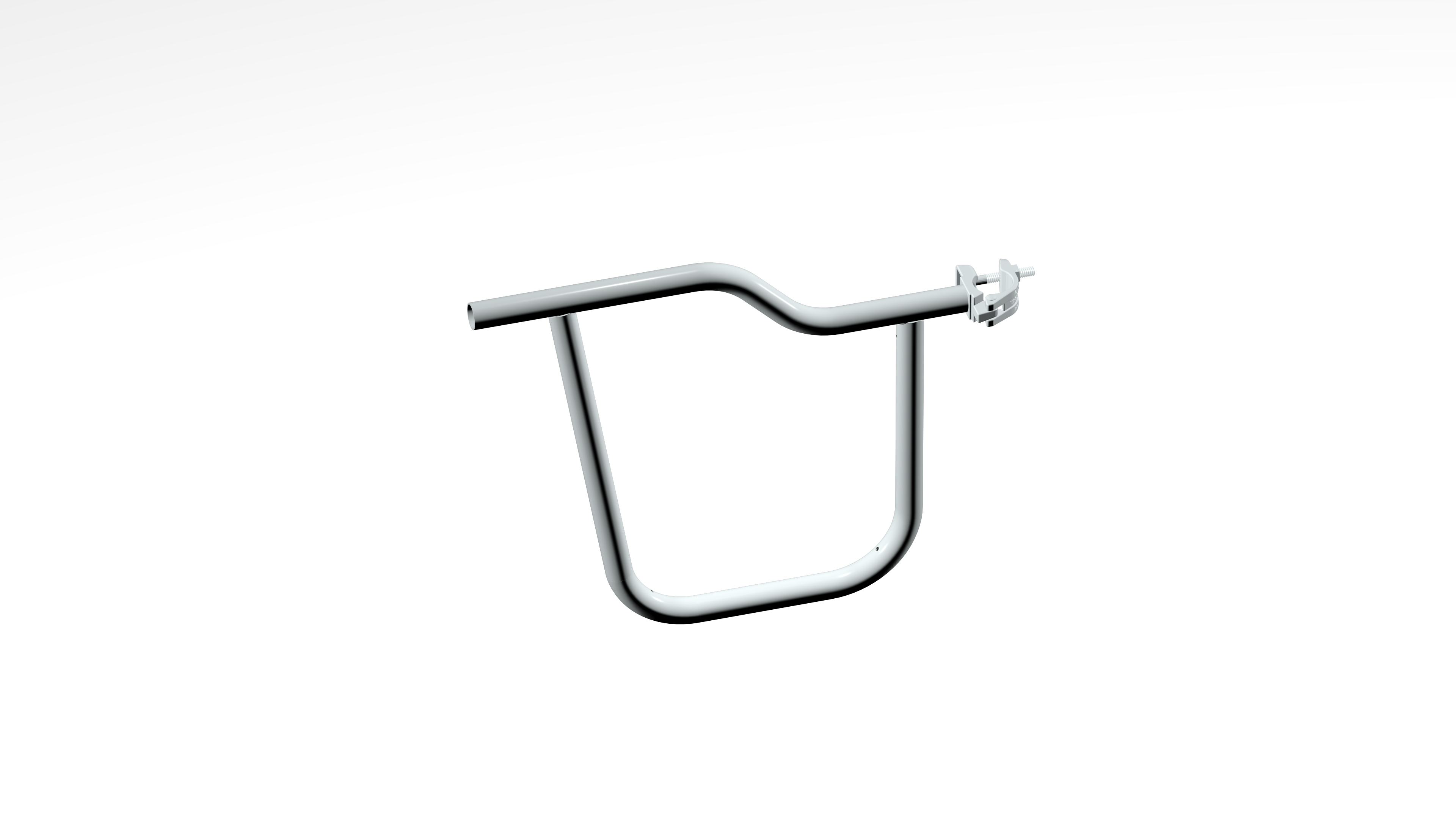

FIXS H 650 mm Guard Rail W 60-90 S235 2.0 mm U Form
Guard rail, H 650 mm, W 60-90 width. S235 steel, 2.0 mm thickness, U Form type.

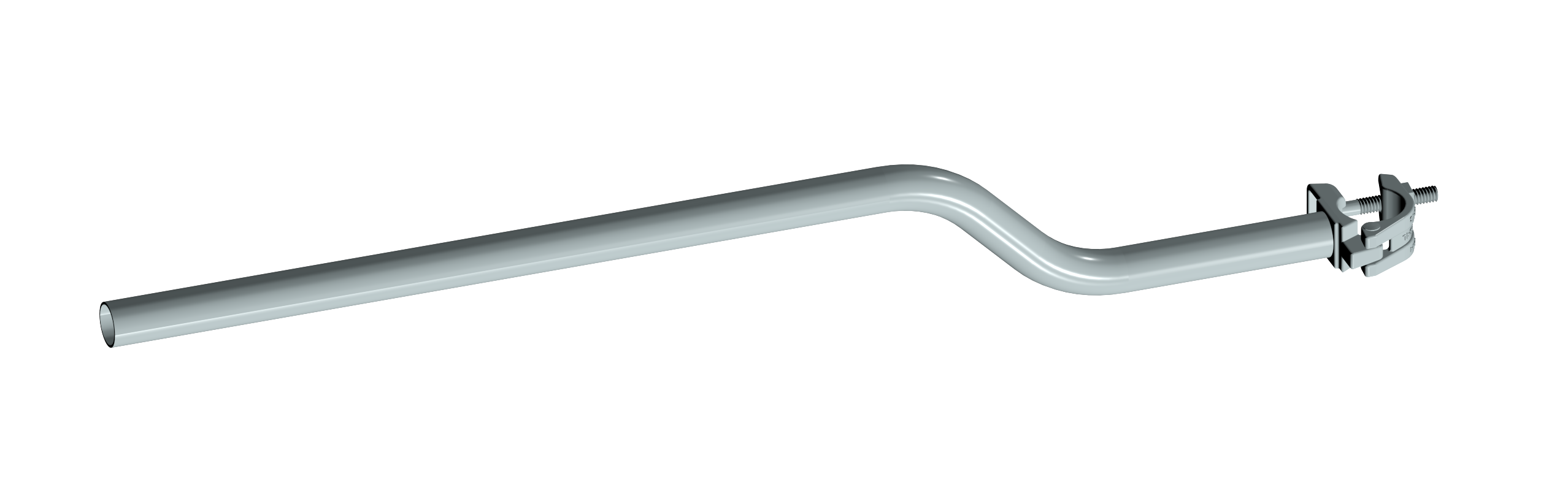

FIXS H 950 mm Guard Rail W 90-120 S235 2.0 mm Line
Guard rail, H 950 mm, W 90-120 width. S235 steel, 2.0 mm thickness, Line type.

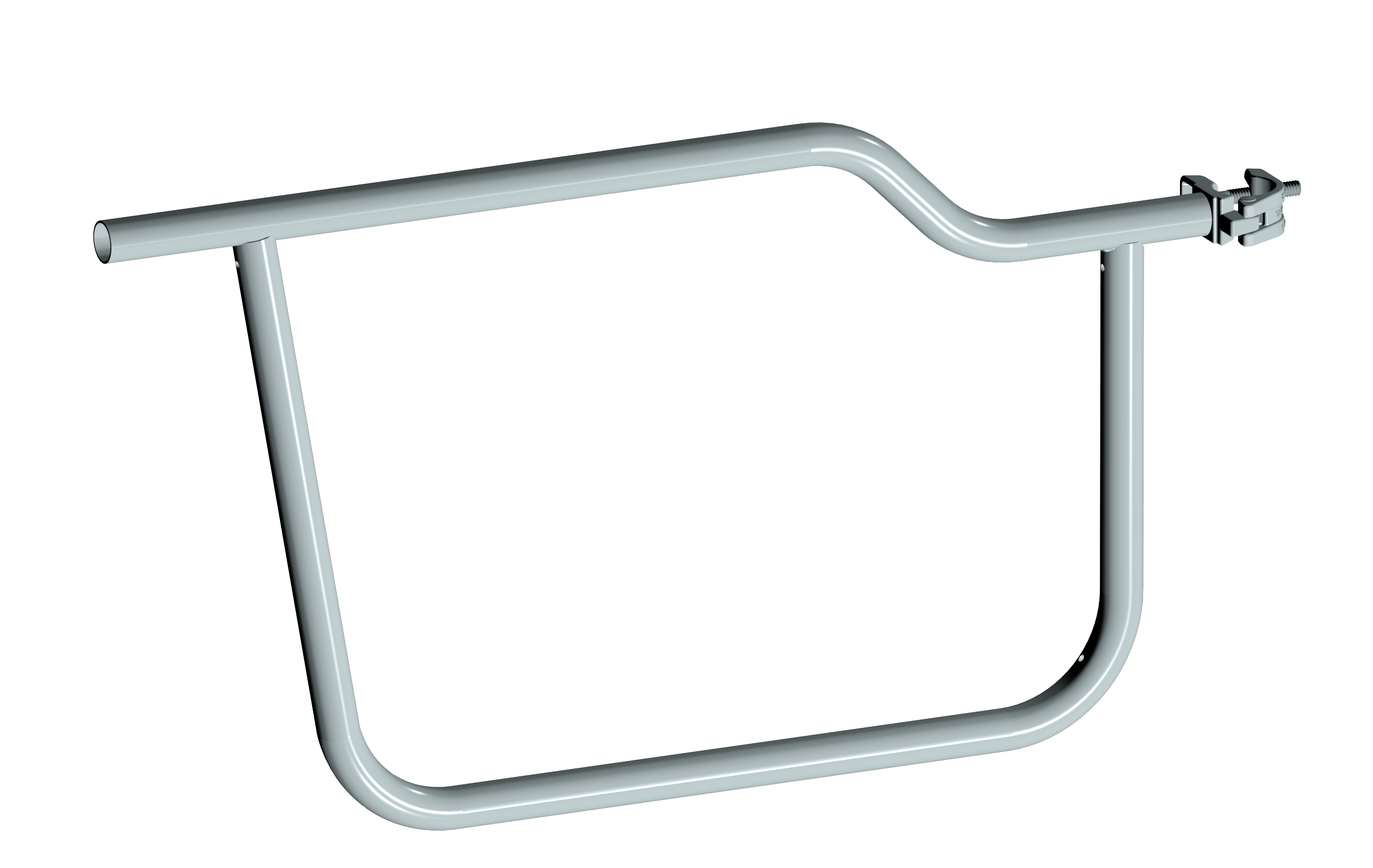

FIXS H 950 mm Guard Rail W 90-120 S235 2.0 mm U Form
Guard rail, H 950 mm, W 90-120 width. S235 steel, 2.0 mm thickness, U Form type.

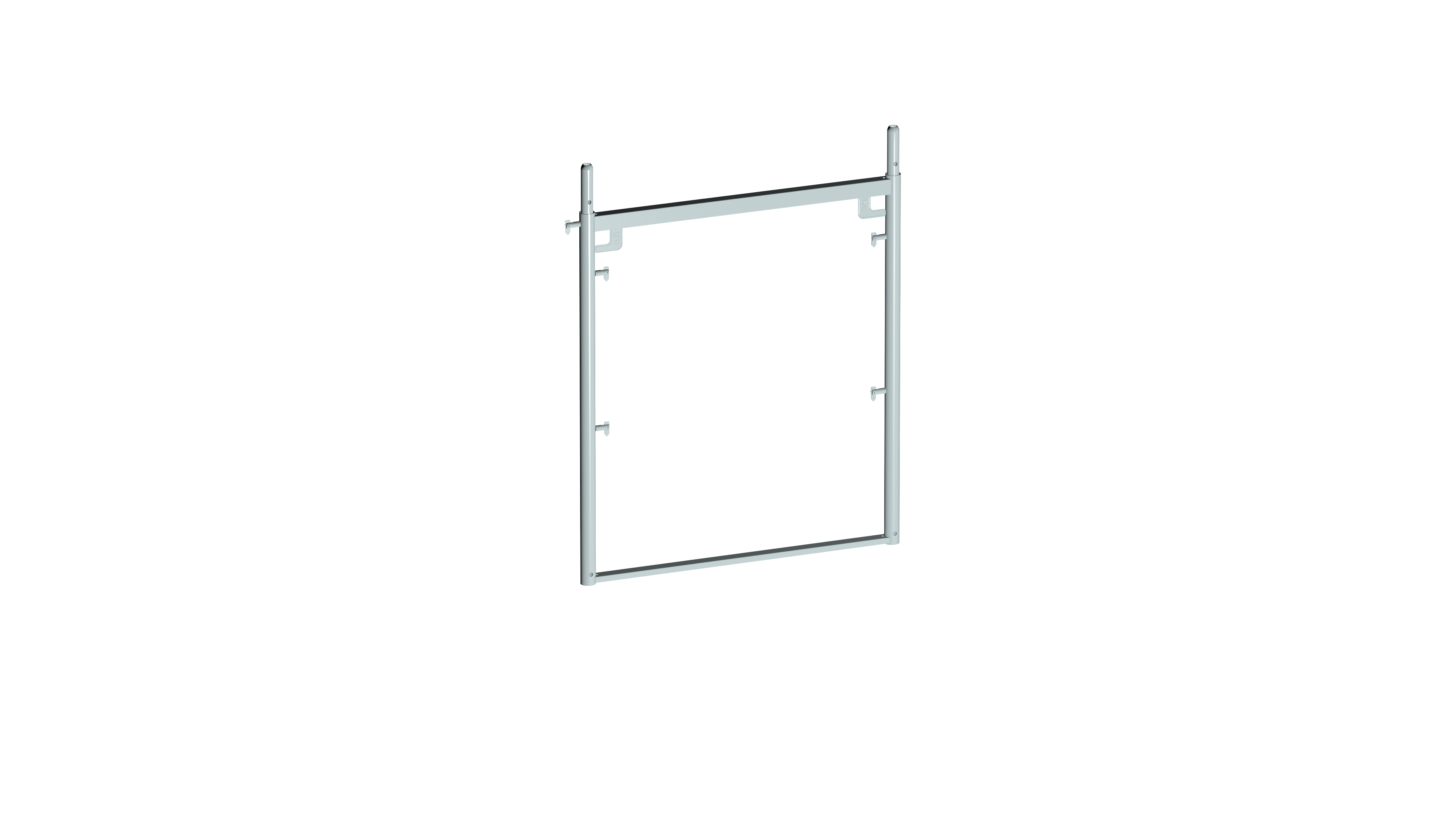

FIXS H 1200 mm Box Form W90-120 Frame S235 3.0 mm 5P
Box Form frame with H 1200 mm height, W90-120 width. S235 steel, 3.0 mm thickness, 5-piece structure.

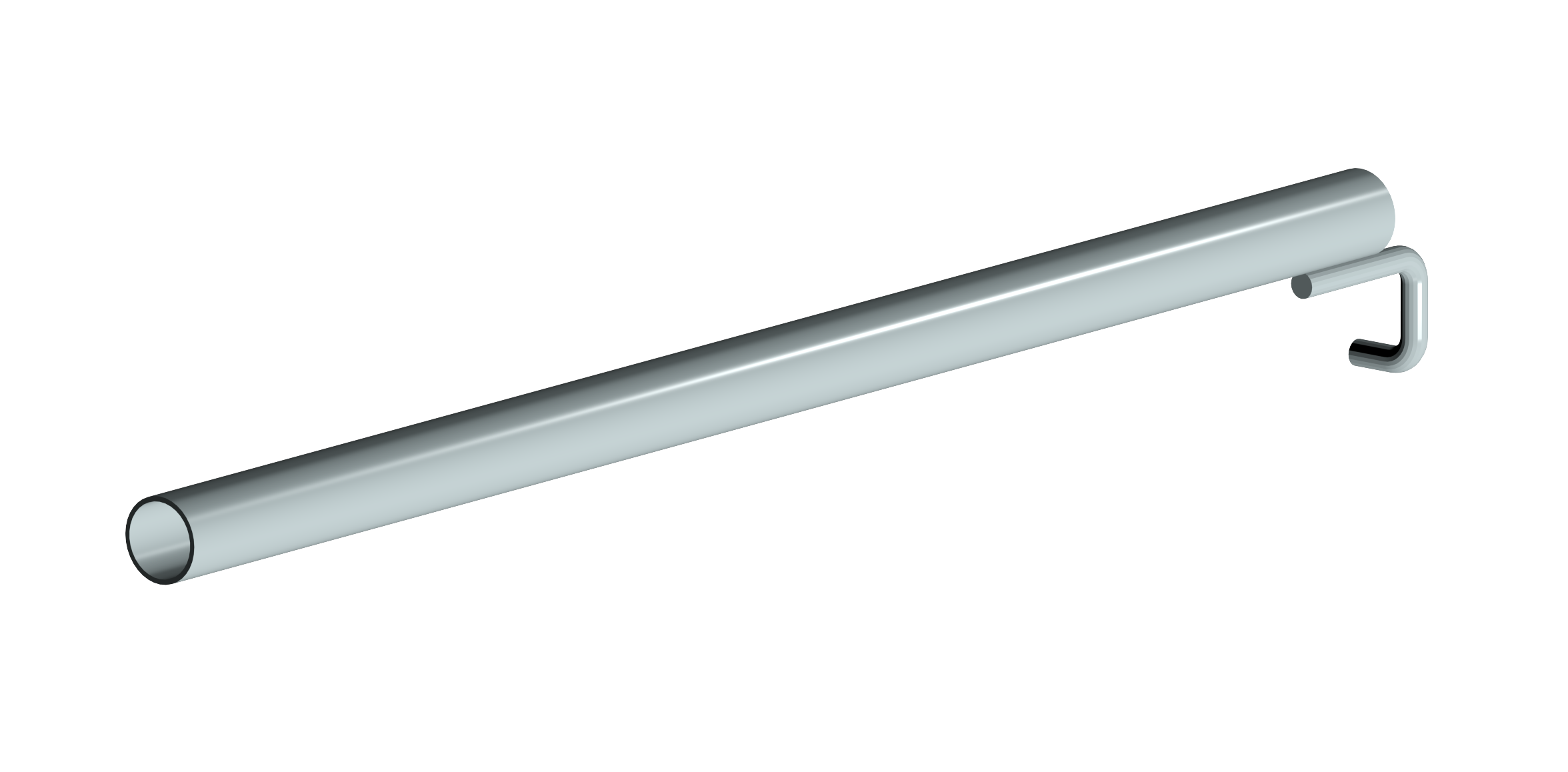

FIXS L 1000 mm Tube S235 3.2 mm - With Hook
Tube, L 1000 mm length. S235 steel, 3.2 mm thickness, with hook.

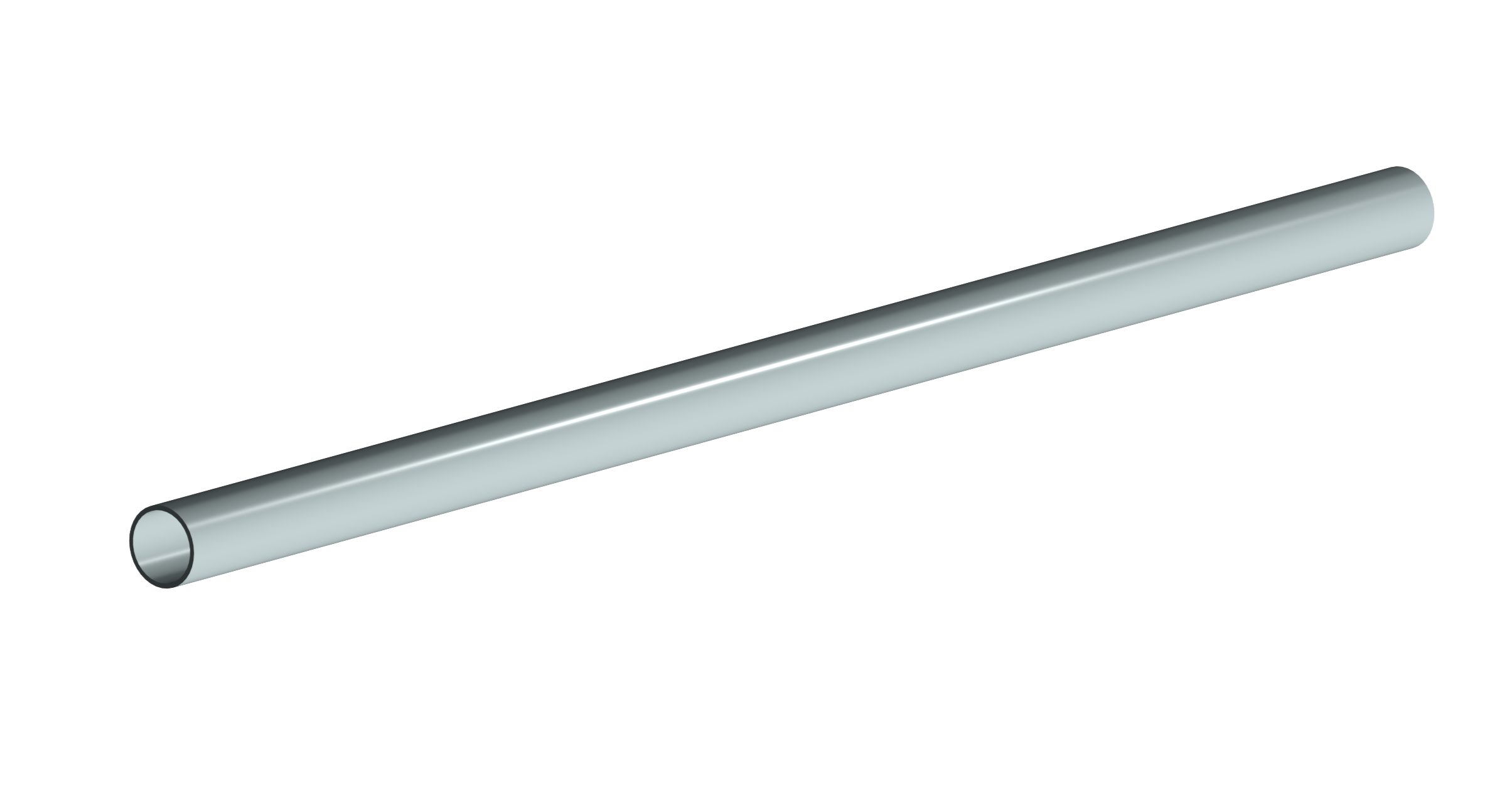

FIXS L 1000 mm Tube S235 3.2 mm
Tube, L 1000 mm length. S235 steel, 3.2 mm thickness.

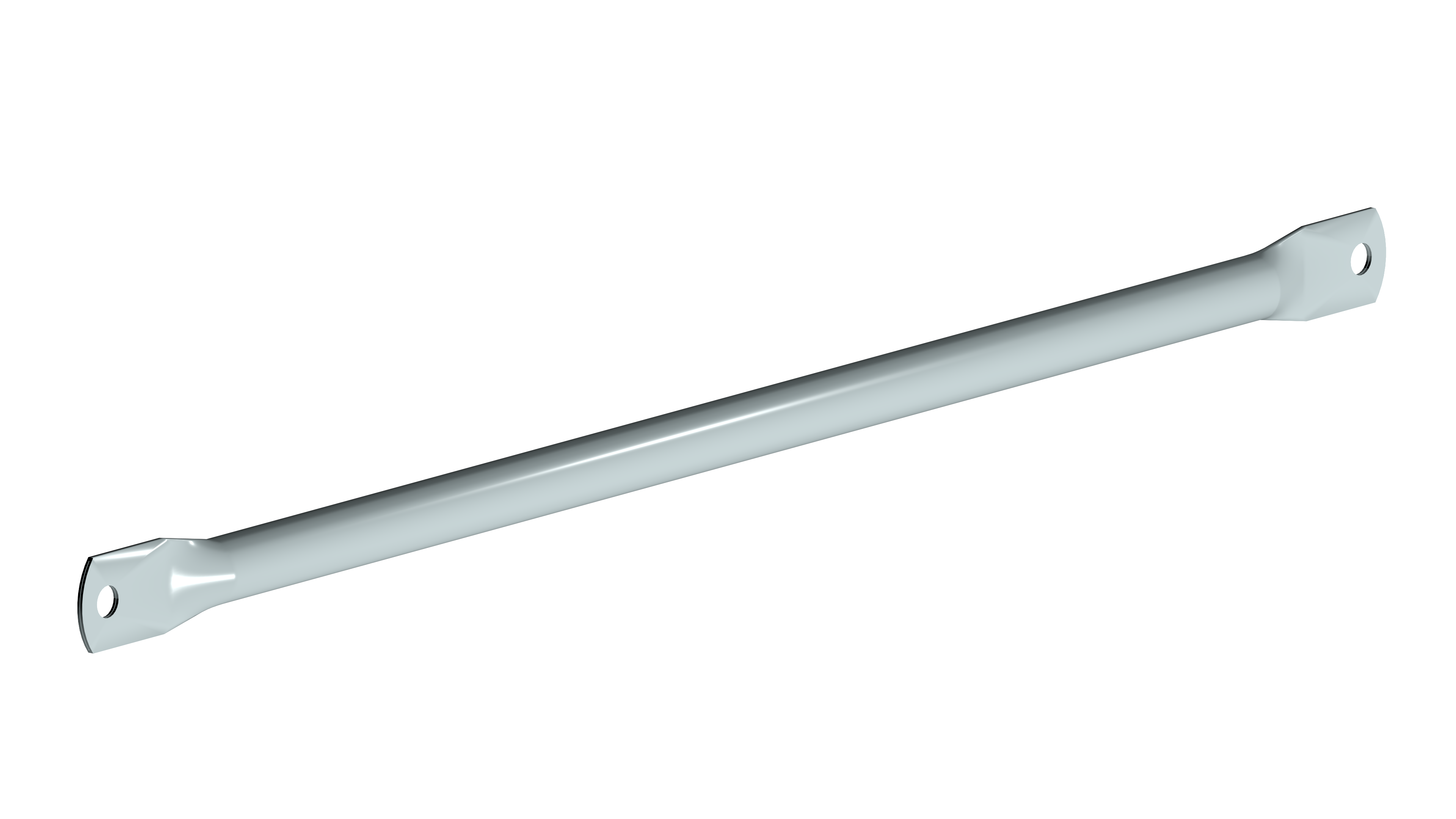

FIXS L 1239 mm Diagonal Brace S235 2.5 mm H 732/1000 mm
Diagonal brace, L 1239 mm length (H732 series, for 1000 mm bay height). S235 steel, 2.5 mm thickness.

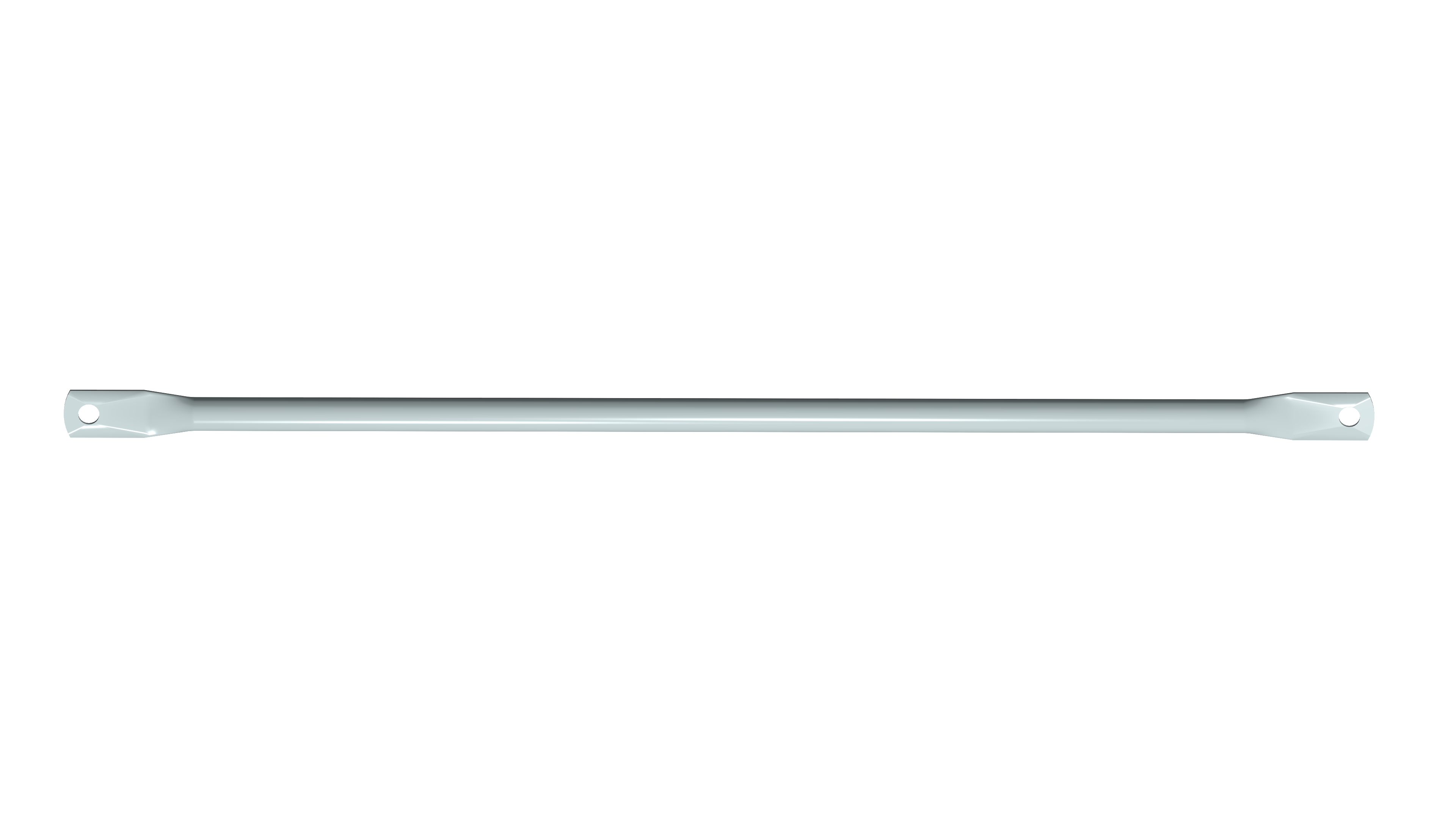

FIXS L 1250 mm Horizontal Brace S235 2.5 mm
Horizontal brace, L 1250 mm length. S235 steel, 2.5 mm thickness.

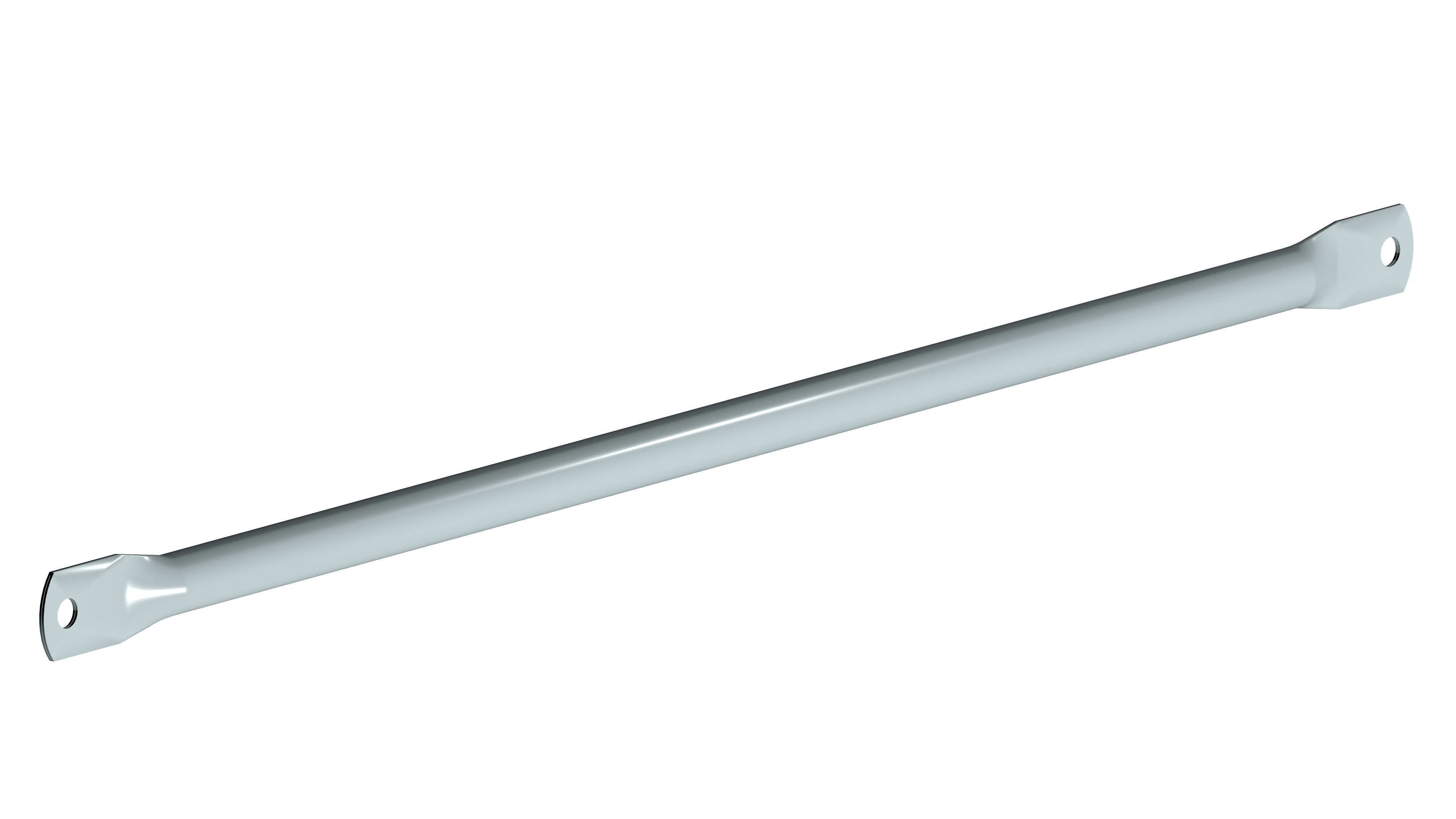

FIXS L 1406 mm Diagonal Brace S235 2.5 mm H 732/1200 mm
Diagonal brace, L 1406 mm length (H732 series, for 1200 mm bay height). S235 steel, 2.5 mm thickness.

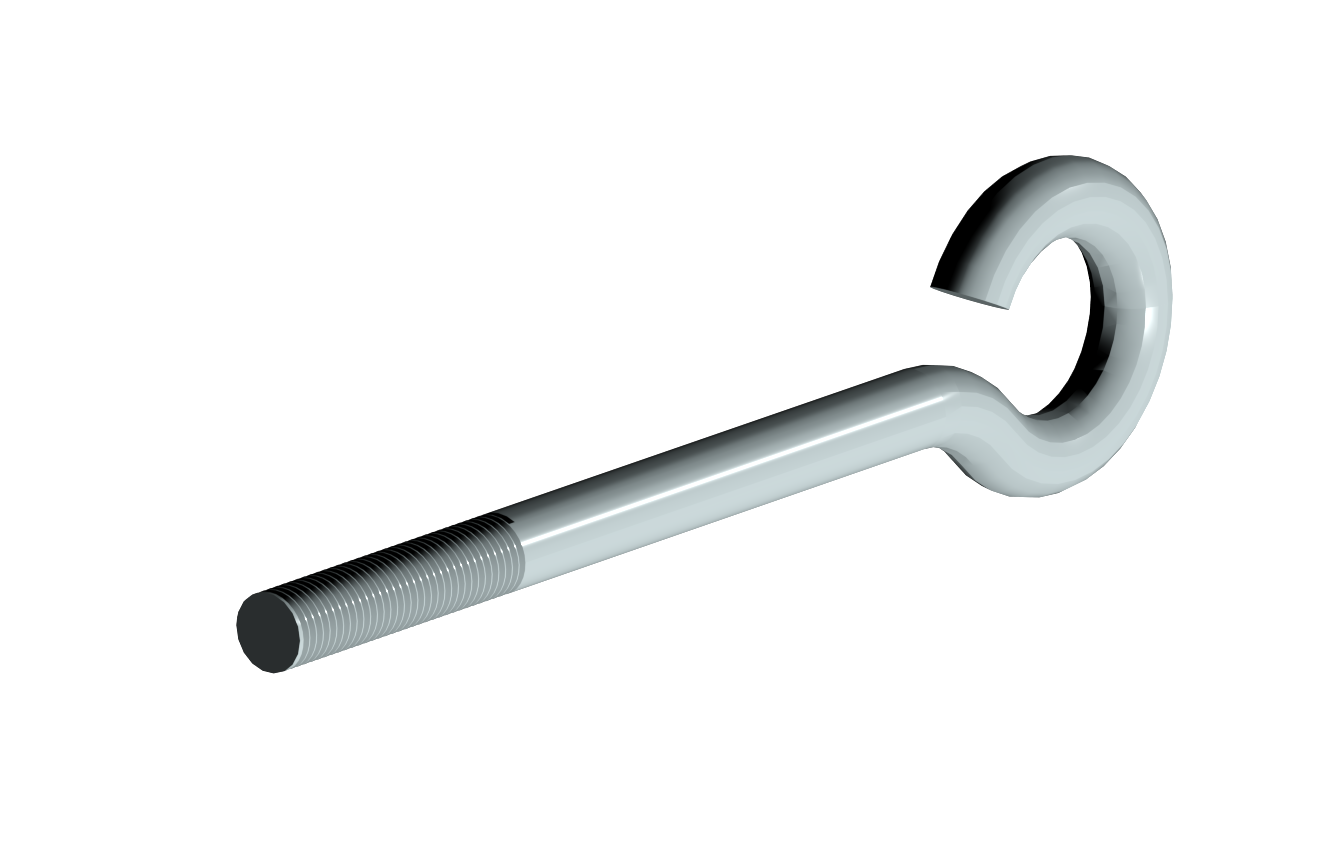

FIXS L 150 mm M12 Ringed Bolt S235 - Accessories
M12 ringed bolt, L 150 mm length. S235 steel accessory.

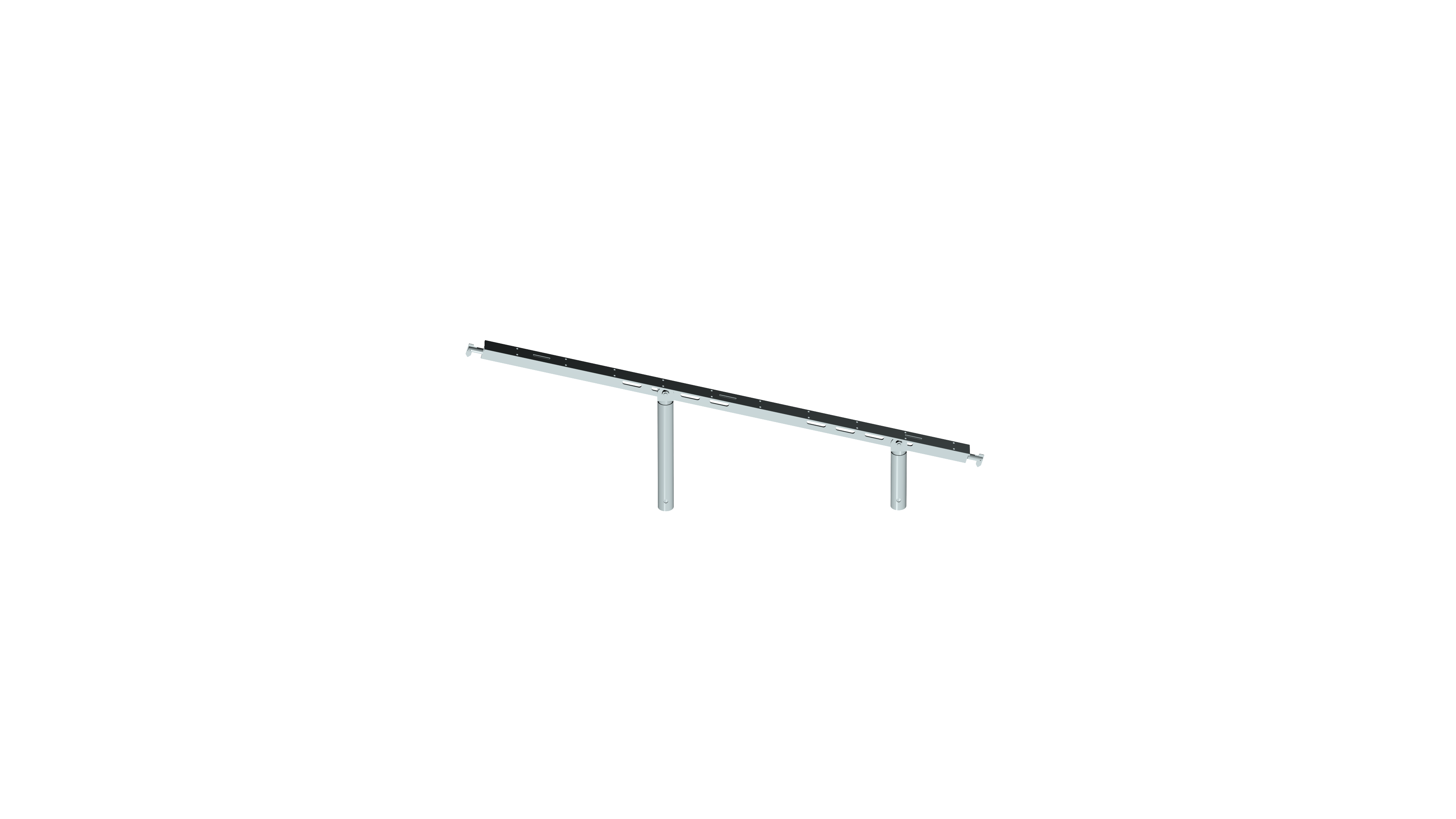

FIXS L 1500 mm W 60-90 Roof Protection Bracket S235 3.5 mm
Roof protection bracket, L 1500 mm length, W 60-90 width. S235 steel, 3.5 mm thickness.

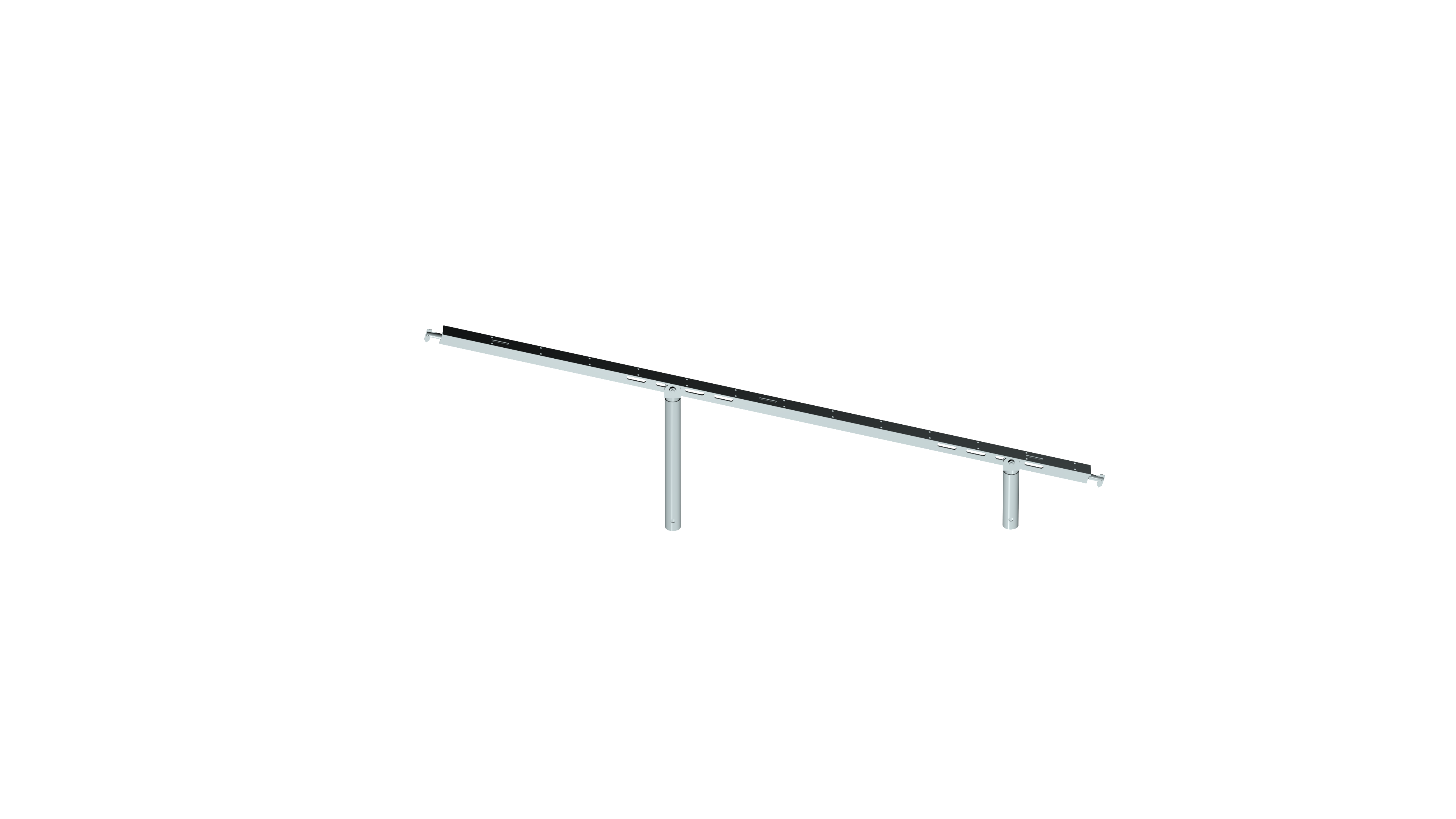

FIXS L 2000 mm W 90-120 Roof Protection Bracket S235 3.5 mm
Roof protection bracket, L 2000 mm length, W 90-120 width. S235 steel, 3.5 mm thickness.

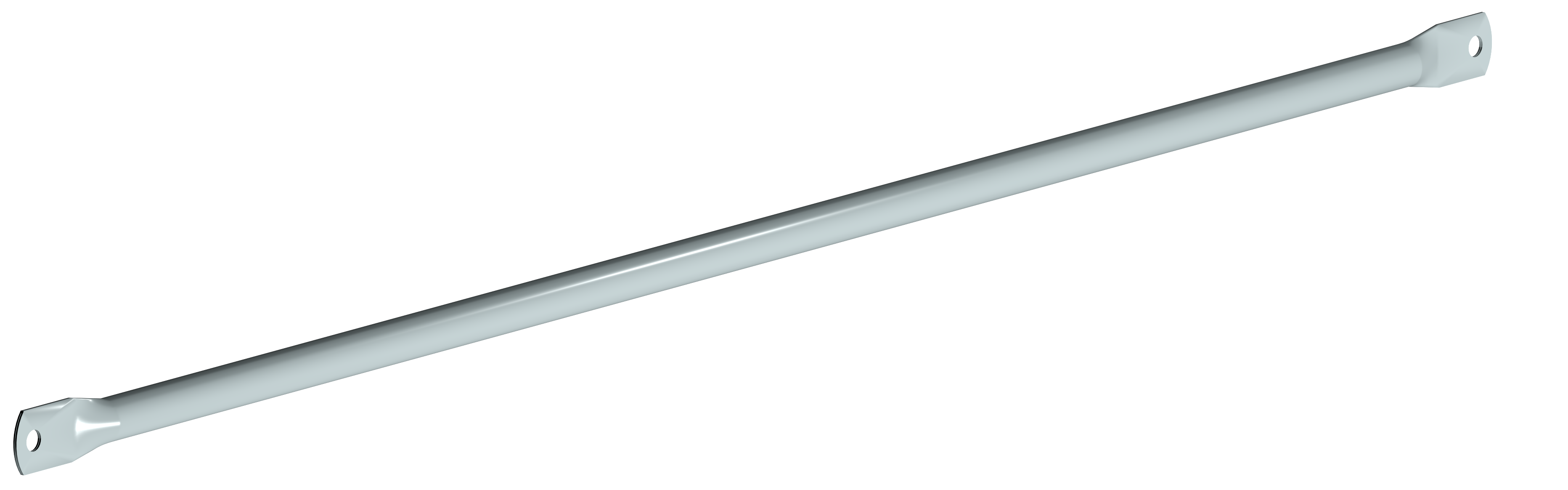

FIXS L 2129 mm Diagonal Brace S235 2.5 mm H 732/2000 mm
Diagonal brace, L 2129 mm length (H732 series, for 2000 mm bay height). S235 steel, 2.5 mm thickness.

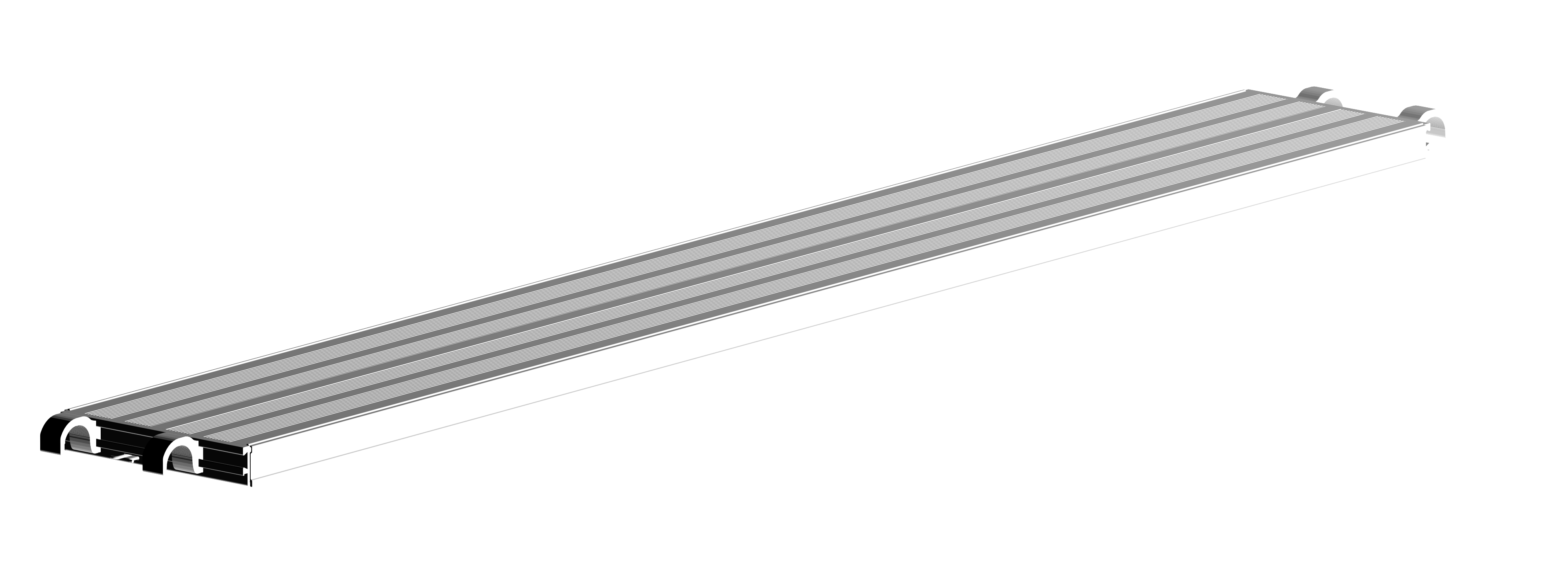

FIXS L 2485 mm Aluminium Platforms S235 1.5 mm W 314 mm
Aluminium plank platform, L 2485 mm length, W 314 mm width. S235, 1.5 mm thickness.

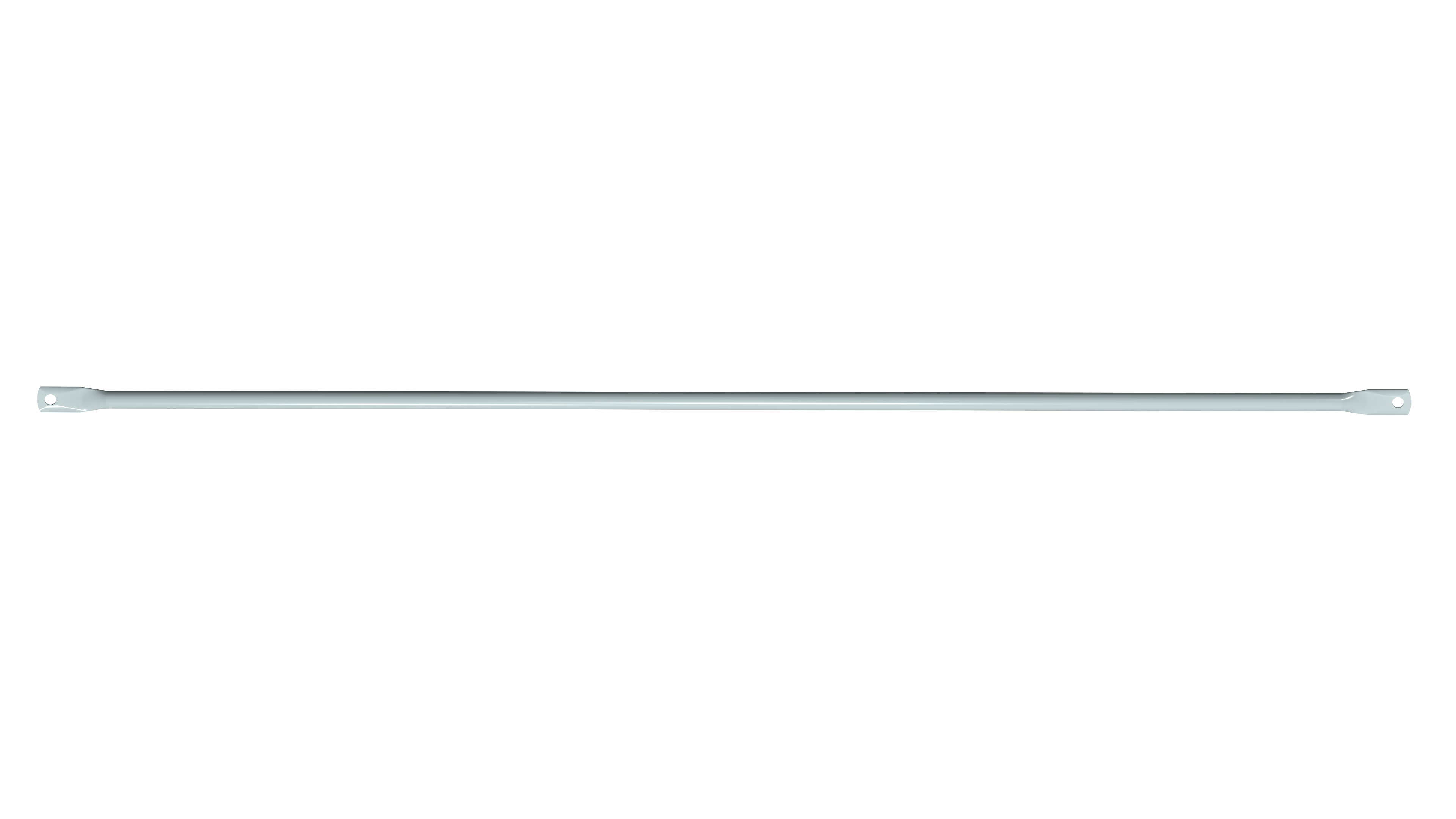

FIXS L 2485 mm Horizontal Brace S235 2.5 mm
Horizontal brace, L 2485 mm length. S235 steel, 2.5 mm thickness.

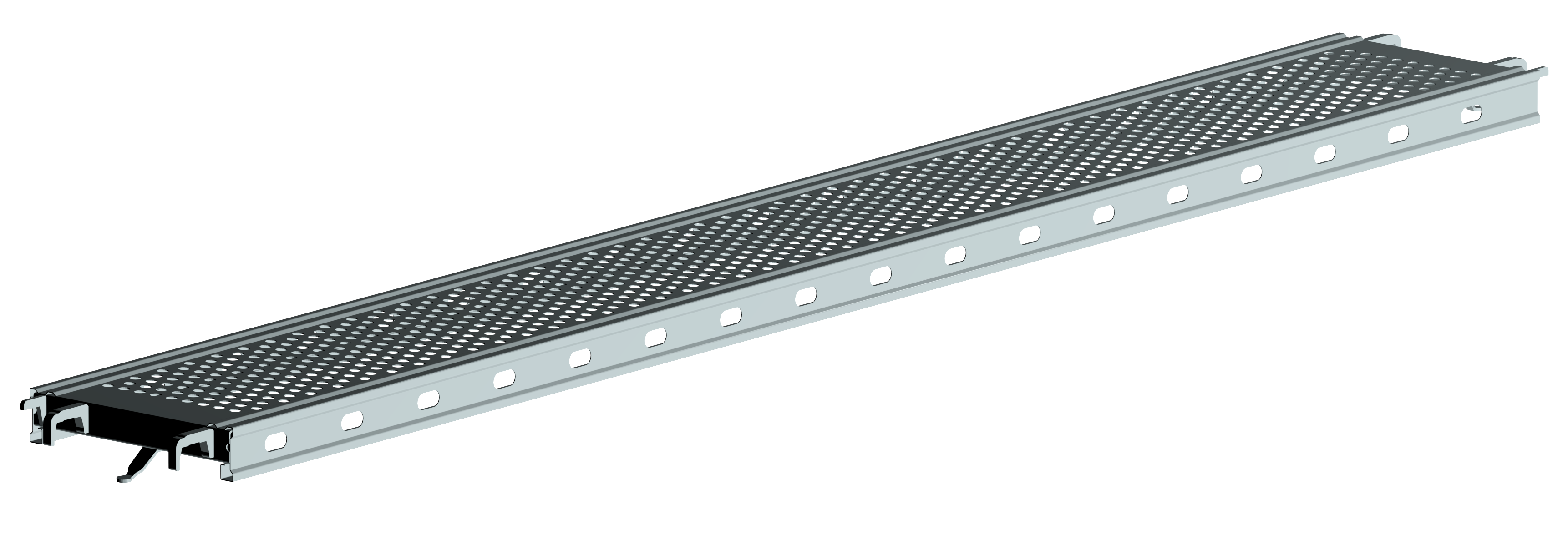

FIXS L 2485 mm Steel Planks S235 1.5 mm W 314 mm
Steel plank platform, L 2485 mm length, W 314 mm width. S235 steel, 1.5 mm thickness.

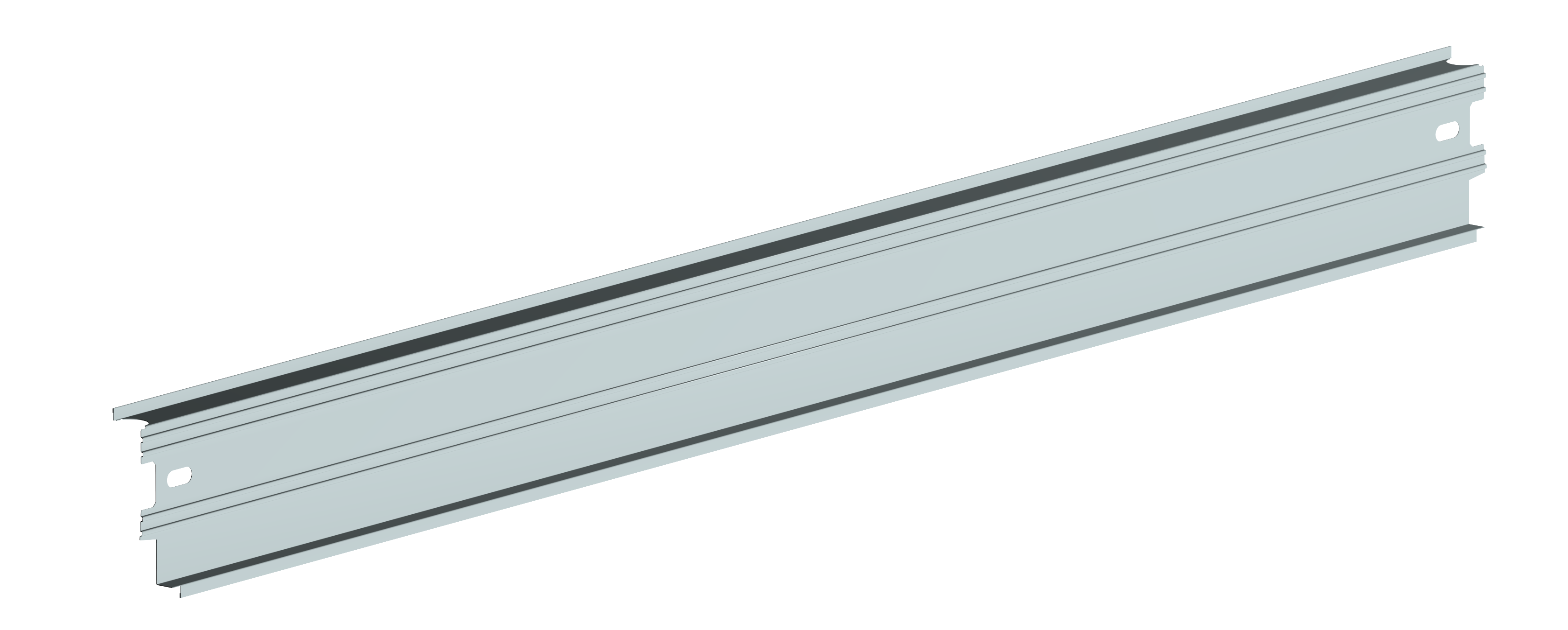

FIXS L 2485 mm Toeboard S235 1.5 mm H 160 mm
Toeboard, L 2485 mm length, H 160 mm height. S235 steel, 1.5 mm thickness.

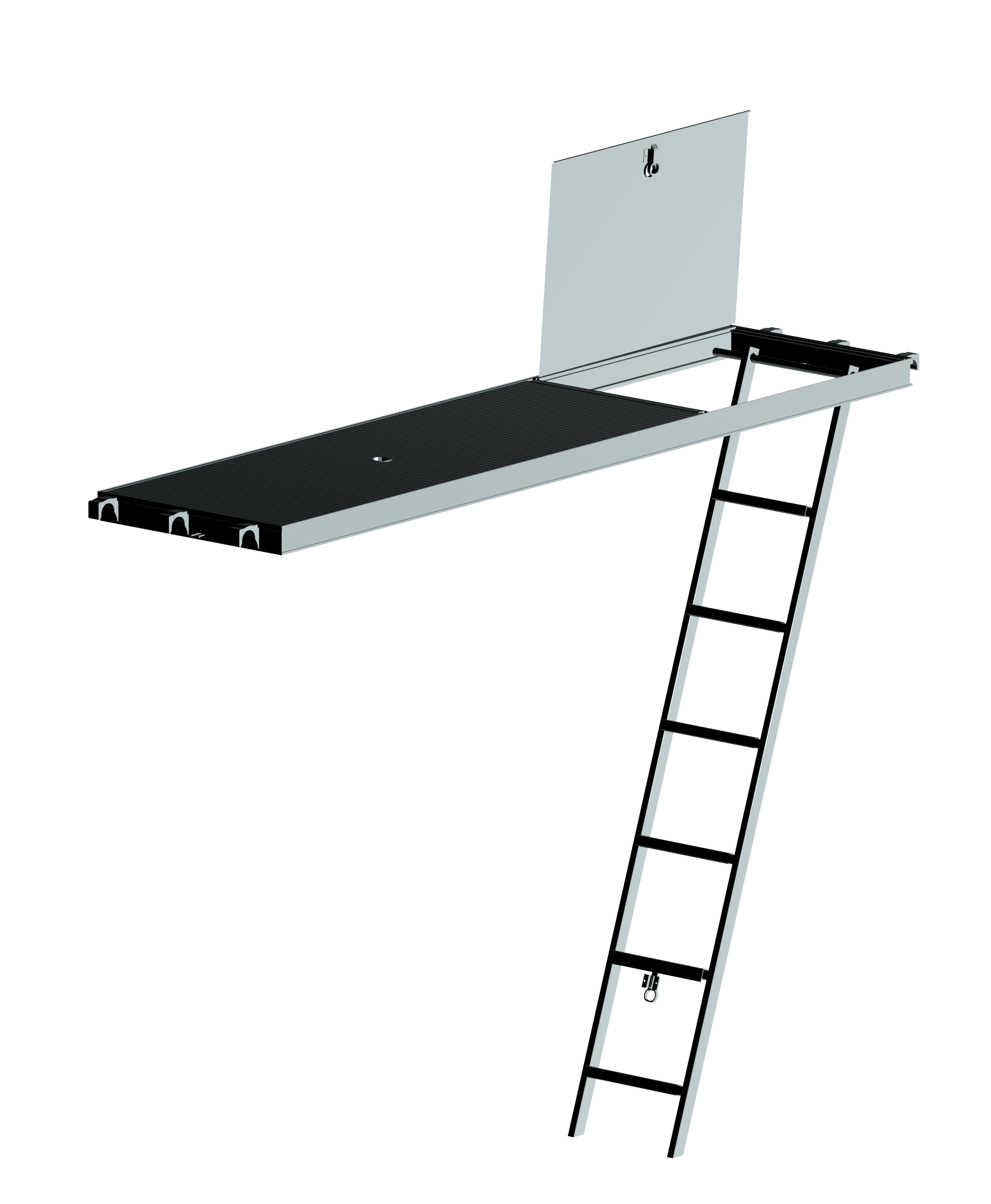

FIXS L 2572 mm Ladder Platforms ALM 6063 2.0 mm W 628 mm
Ladder platform plank, L 2572 mm length, W 628 mm width. ALM 6063 aluminium, 2.0 mm thickness.

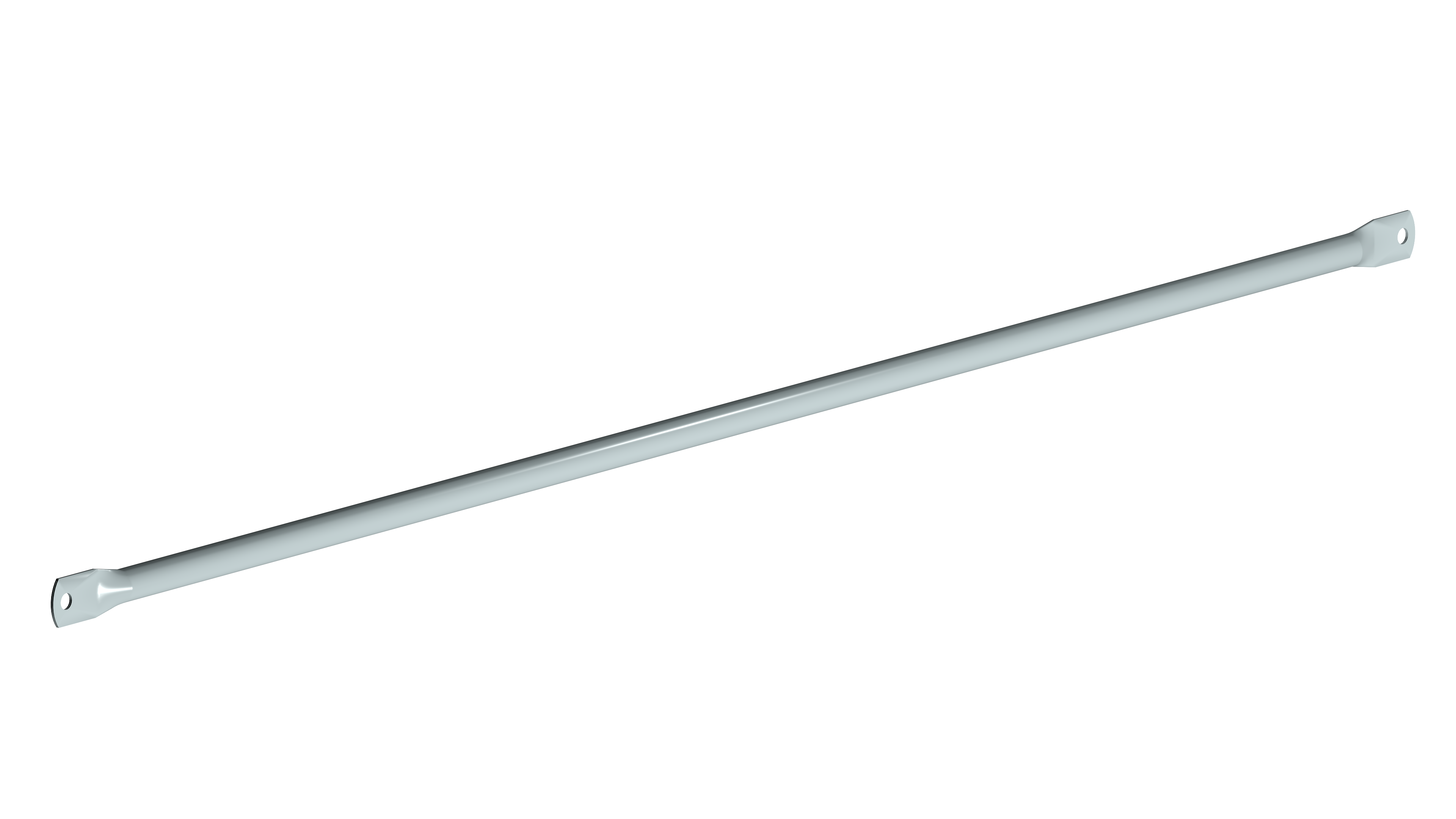

FIXS L 2601 mm Diagonal Brace S235 2.5 mm H 732/2500 mm
Diagonal brace, L 2601 mm length (H732 series, for 2500 mm bay height). S235 steel, 2.5 mm thickness.

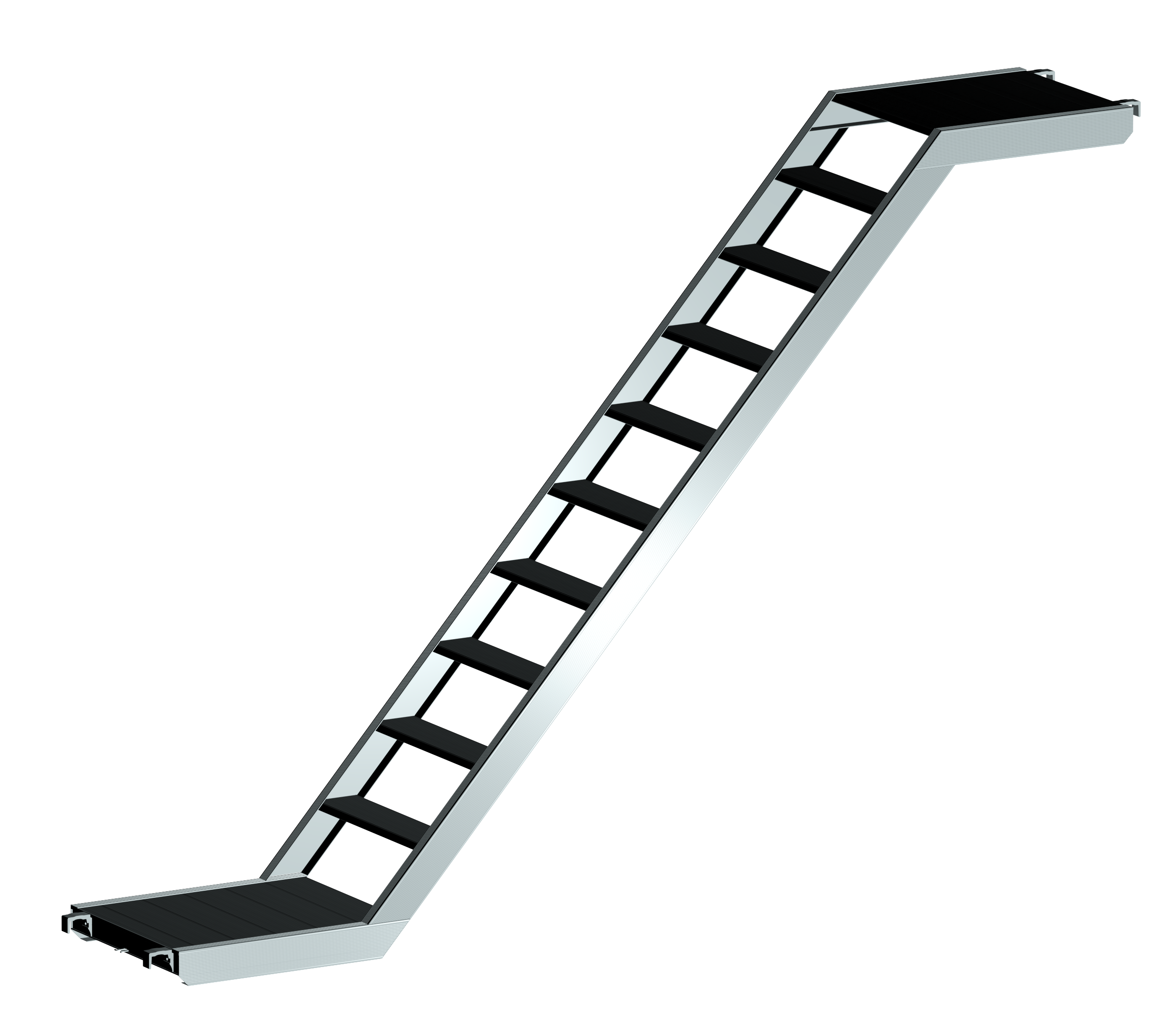

FIXS L 3072 mm Diagonal Ladder ALM 6063 2.5 mm W 628 mm H 2000 mm
Diagonal ladder, L 3072 mm length, W 628 mm width, H 2000 mm bay height. ALM 6063 aluminium, 2.5 mm thickness.

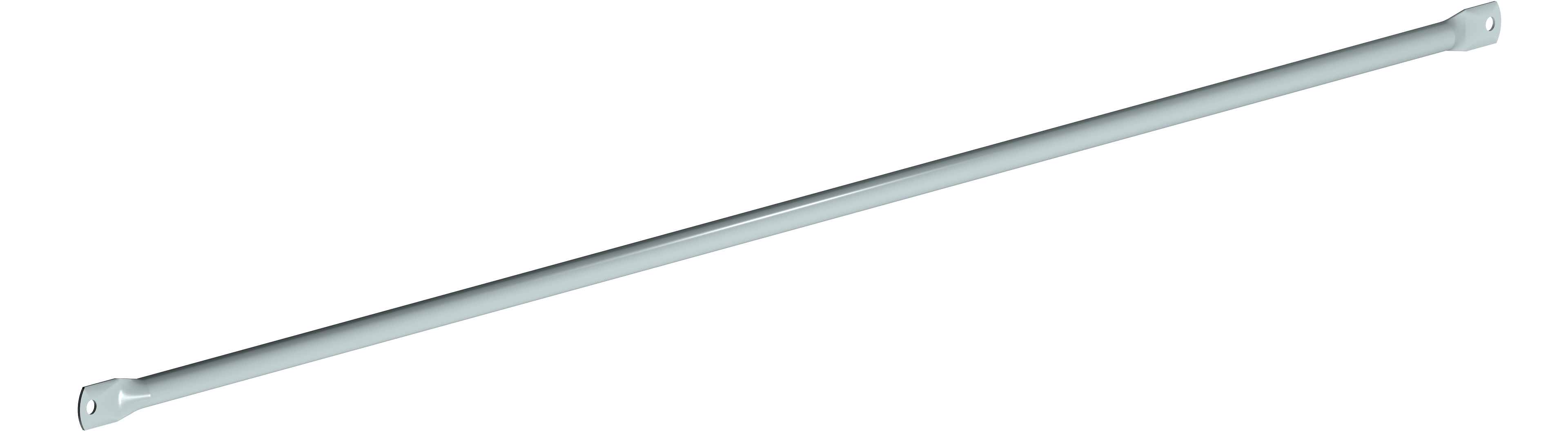

FIXS L 3088 mm Diagonal Brace S235 2.5 mm H 732/3000 mm
Diagonal brace, L 3088 mm length (H732 series, for 3000 mm bay height). S235 steel, 2.5 mm thickness.

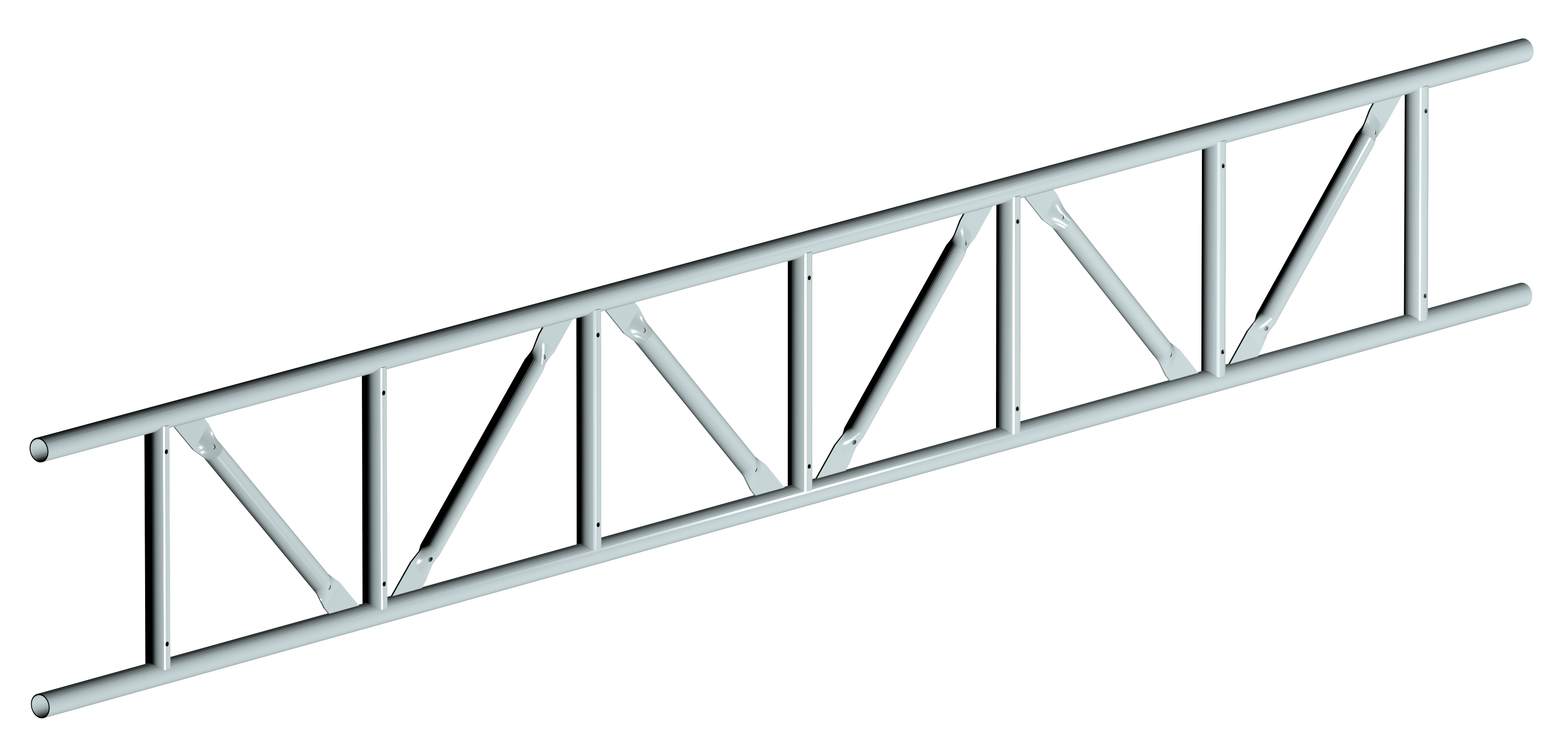

FIXS L 4500 mm Girder Beams S235 4.0 mm H 500 mm
Girder beam, L 4500 mm length, H 500 mm height. S235 steel, 4.0 mm thickness.

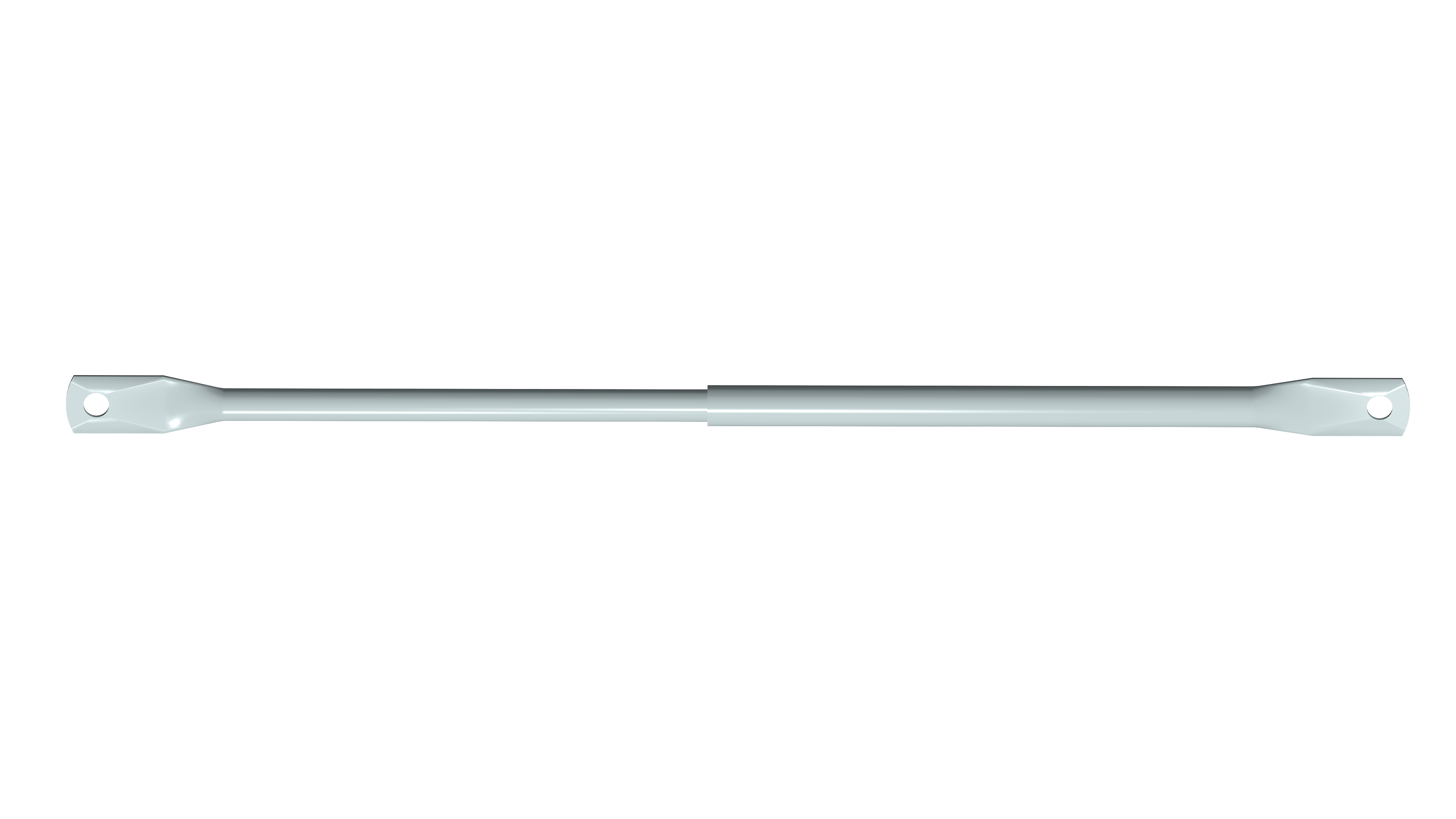

FIXS L 650-1050 mm Telescopic Horizontal Bracing S235 3.0 mm
Telescopic horizontal bracing with adjustable length L 650-1050 mm. S235 steel, 3.0 mm thickness.

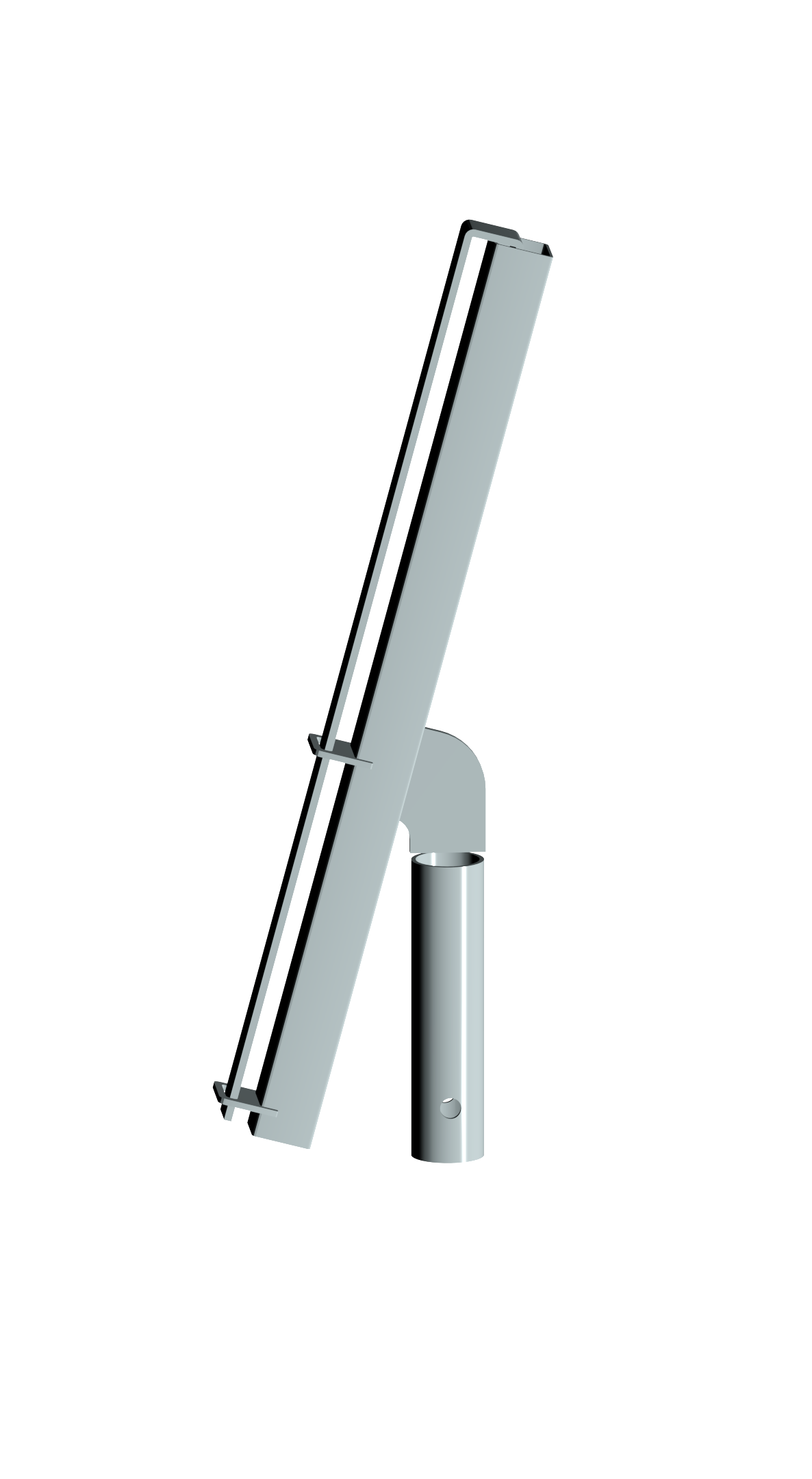

FIXS L 650 mm Shelter Bracket S235 3.5 mm
Shelter bracket, L 650 mm length. S235 steel, 3.5 mm thickness.

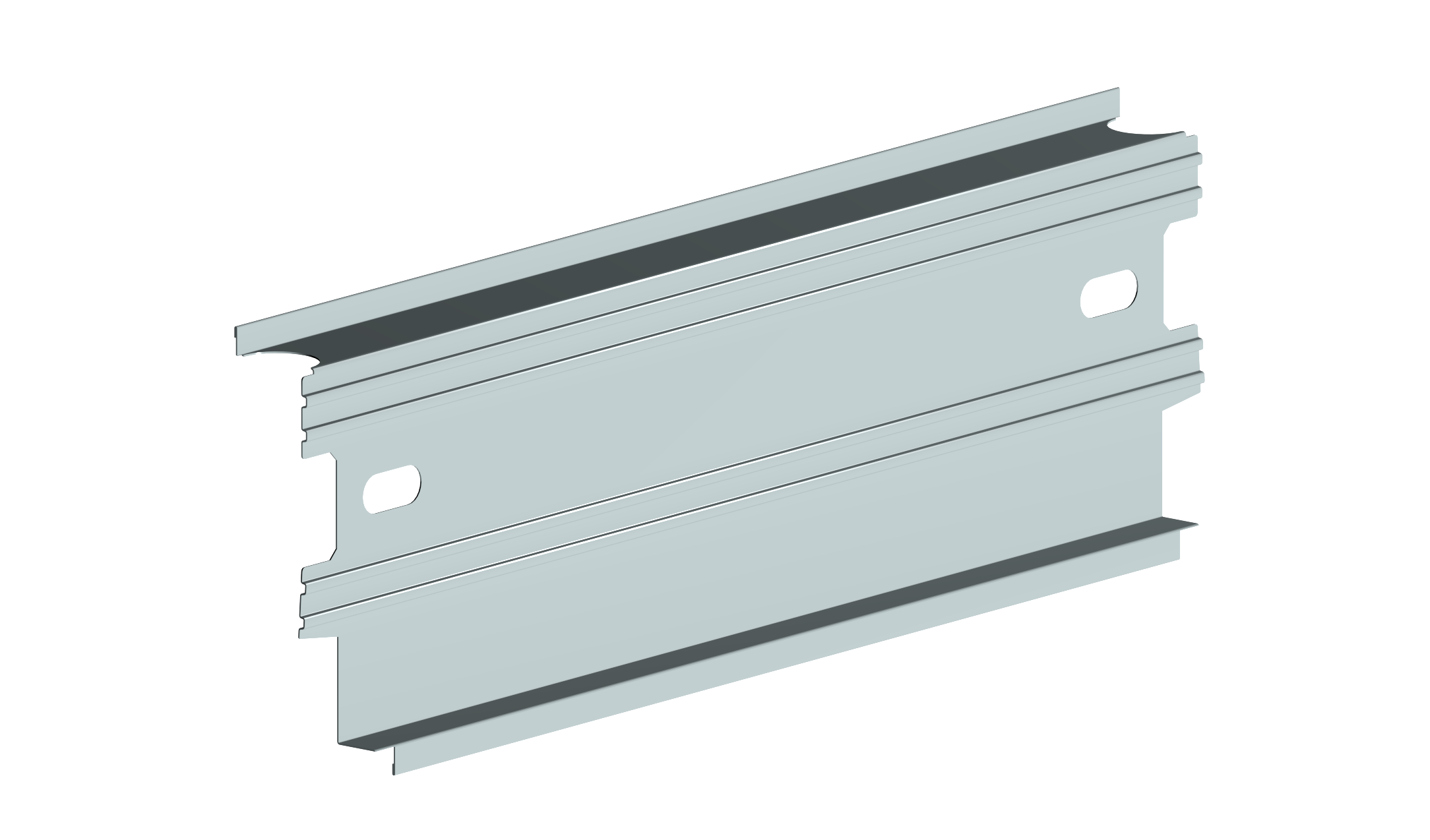

FIXS L 698 mm Toeboard S235 1.5 mm H 160 mm
Toeboard, L 698 mm length, H 160 mm height. S235 steel, 1.5 mm thickness.

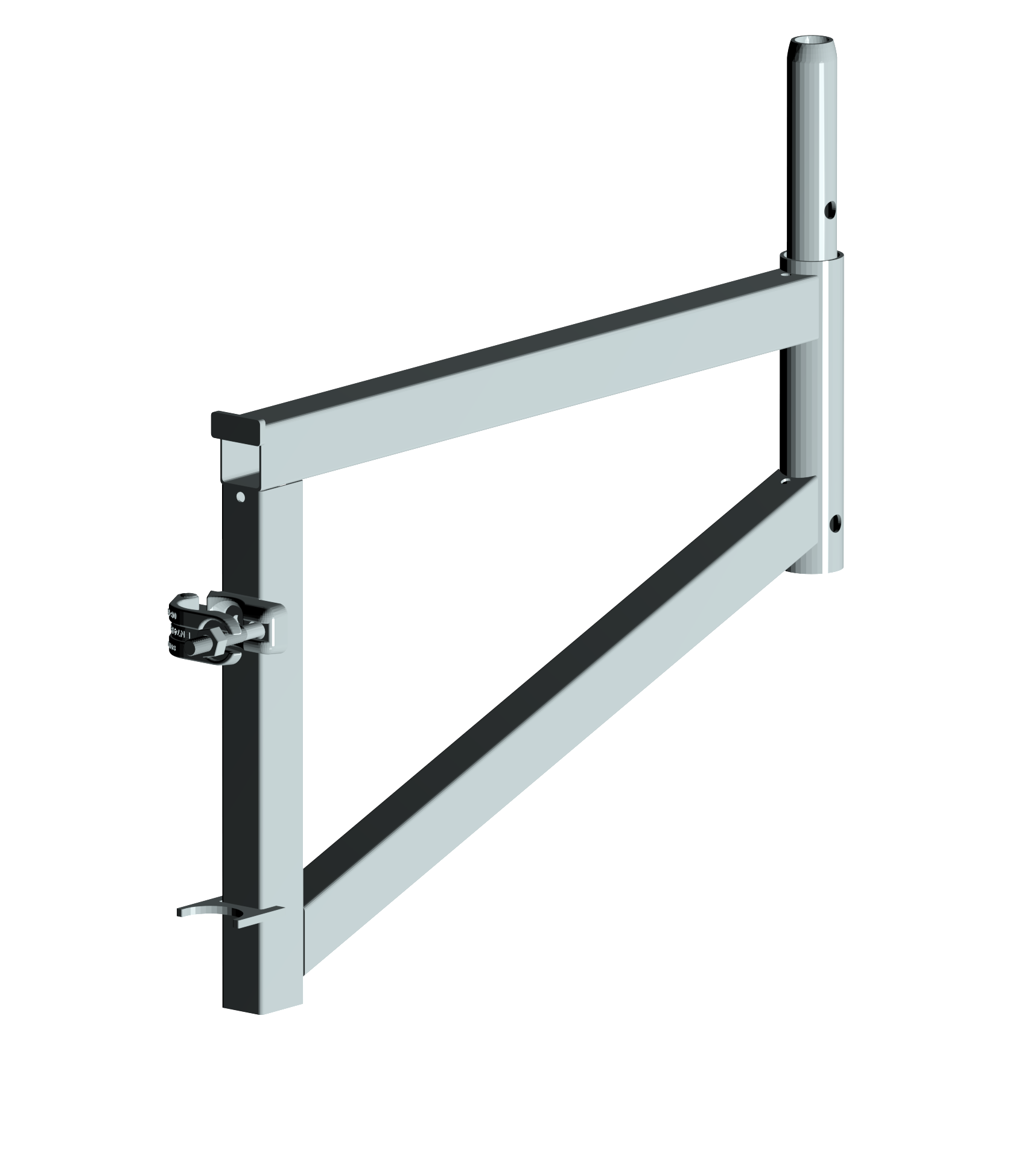

FIXS L 698 mm Two Deck Bracket S235 3.2 mm
Two-level console bracket, L 698 mm length. S235 steel, 3.2 mm thickness.

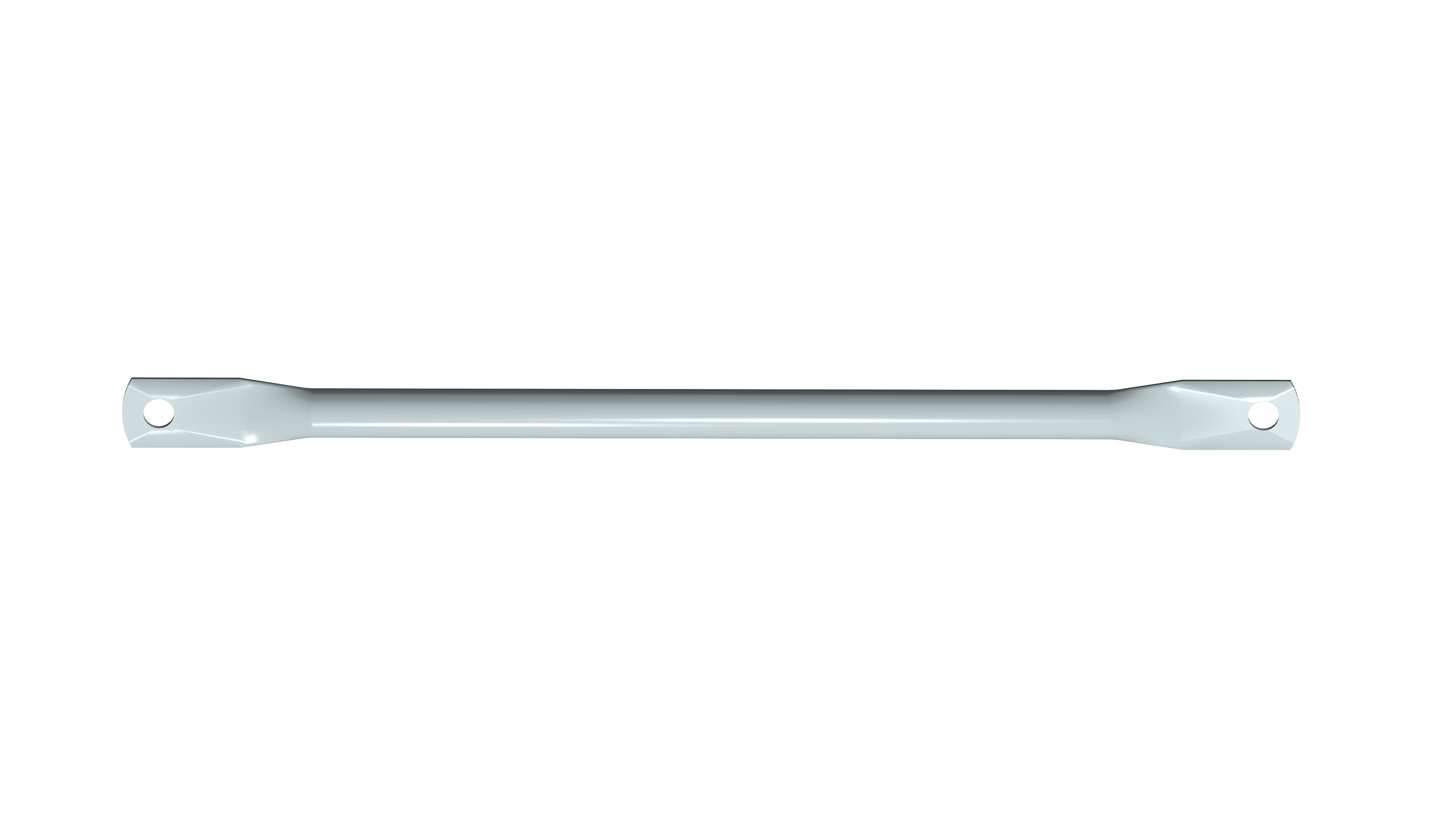

FIXS L 750 mm Horizontal Brace S235 2.5 mm
Horizontal brace, L 750 mm length. S235 steel, 2.5 mm thickness.

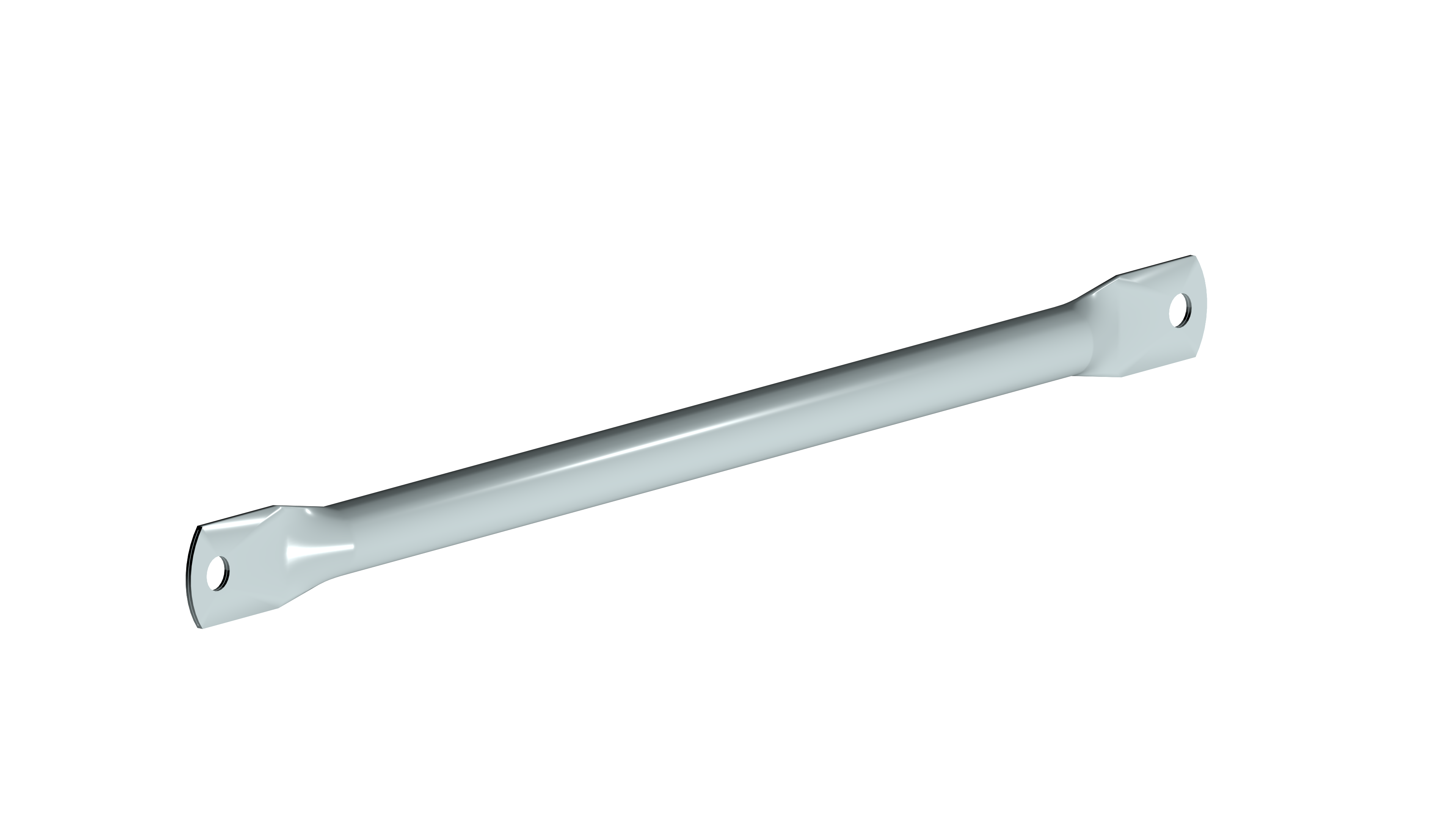

FIXS L 887 mm Diagonal Brace S235 2.5 mm H 732/500 mm
Diagonal brace, L 887 mm length (H732 series, for 500 mm bay height). S235 steel, 2.5 mm thickness.
